Indexing Plunger
Indexing Plungers with Pull Knob

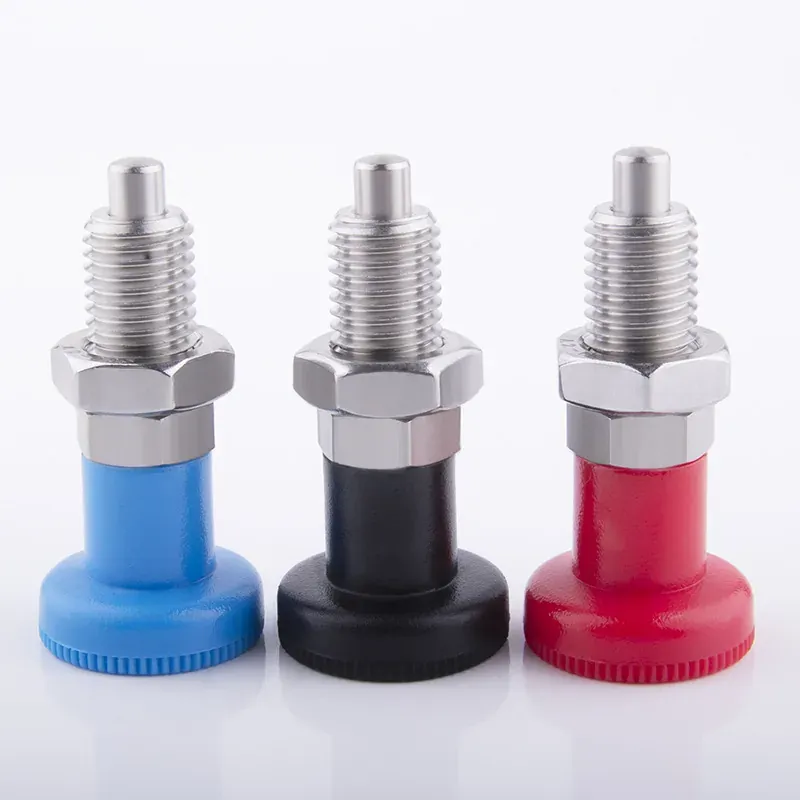

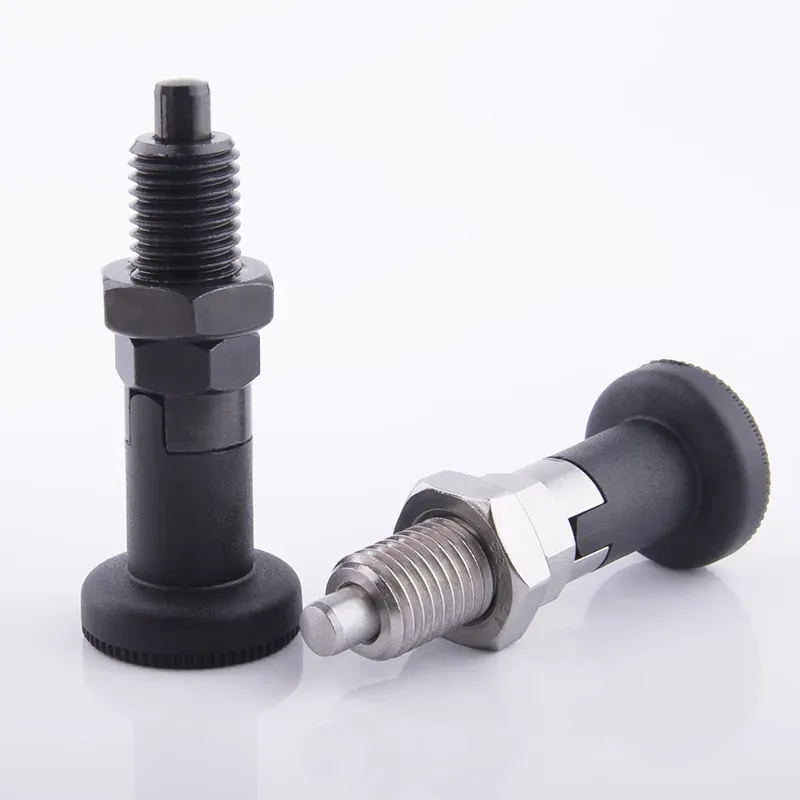

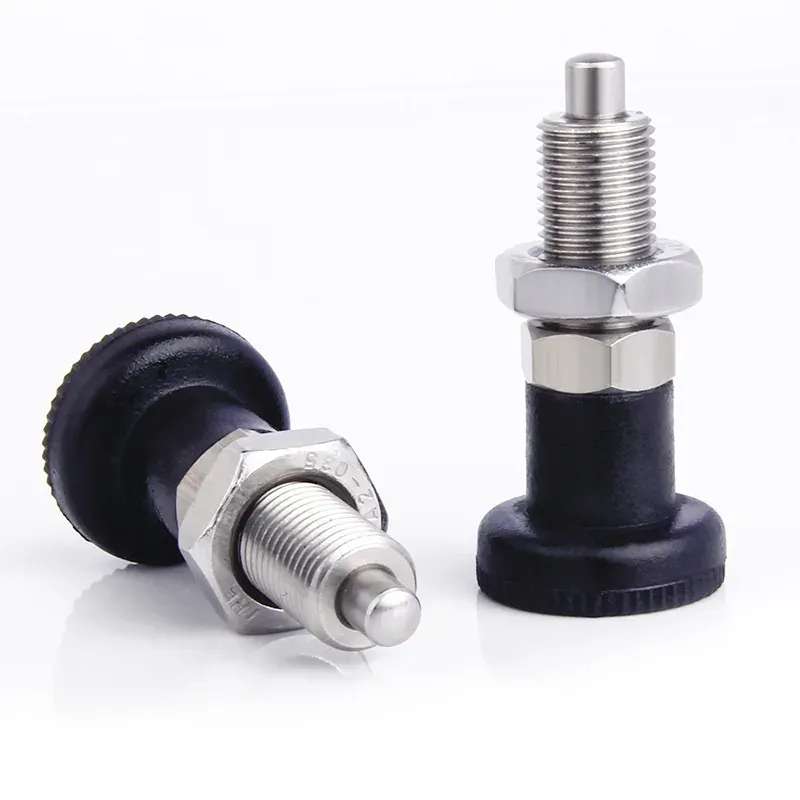

Indexing plungers with pull knob - with pull knobs in the colors shown in the product photos. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Indexing plunger
- Handle
- Pull knob (black, blue, red options)
- Thread / sizes
- Standard and custom sizes to drawing
- Material
- Per drawing specification
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview
Indexing plungers with pull knob: press or pull the knob to retract the spring-loaded pin, reposition the part, and release to lock. Indexing Plungers with Pull Knob are shown in the product photos.
Available Sizes and Options
Standard and custom sizes: tell us the thread size, plunger length, and quantity you need, or send a drawing - we manufacture to specification under our OEM/ODM service.
Types and materials (self-locking type) (from the specification sheet in the product photos):
Model | Thread | Knob | Main body | Body surface | Pin | Pin surface | Spring | Lock nut | Nut surface |
|---|---|---|---|---|---|---|---|---|---|
220-CK | Fine | Plastic | Steel | Blackened | Steel | Blackened | Stainless steel | Steel | Blackened |
220-CNK | Fine | Plastic | Stainless steel | - | Stainless steel | - | Stainless steel | Stainless steel | - |

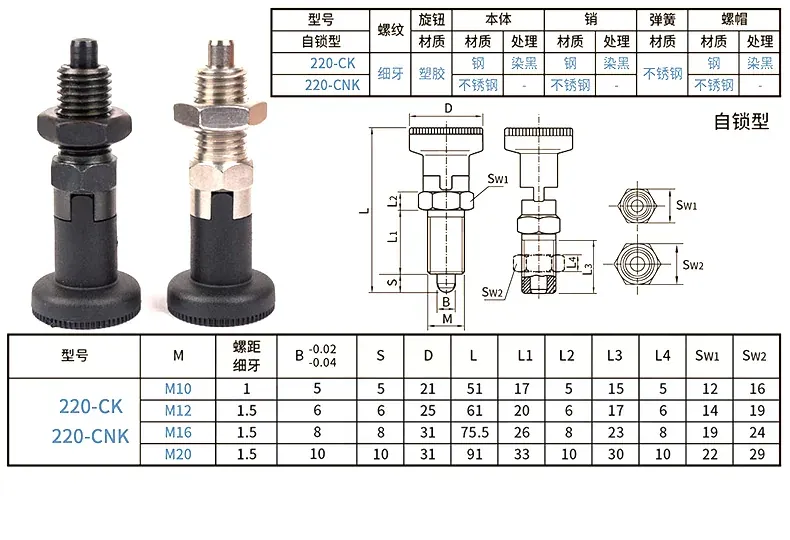

Dimensions (mm), B tolerance -0.02/-0.04 (from the specification sheet in the product photos):
M | Pitch (fine) | B | S | D | L | L1 | L2 | L3 | L4 | SW1 | SW2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
M10 | 1 | 5 | 5 | 21 | 51 | 17 | 5 | 15 | 5 | 12 | 16 |
M12 | 1.5 | 6 | 6 | 25 | 61 | 20 | 6 | 17 | 6 | 14 | 19 |
M16 | 1.5 | 8 | 8 | 31 | 75.5 | 26 | 8 | 23 | 8 | 19 | 24 |
M20 | 1.5 | 10 | 10 | 31 | 91 | 33 | 10 | 30 | 10 | 22 | 29 |
Materials and Finishes
Material and finish follow your drawing specification.
Applications
Machine builds, fixtures, jigs, and adjustable stops where parts must be positioned or indexed without tools. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The plunger type, thread size, plunger length, material, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a sample?
A: Yes. Send the sample or a drawing and we manufacture to match.
Q: Do you ship worldwide?
A: Yes. We supply B2B customers worldwide from Shenzhen with export packing.
