Ball Lock Pin
Push Button Quick Release Pins
Push button quick release pins - the 113 series with button-release ball lock mechanism, seven shank diameters from 5 to 20 mm, and selectable grip lengths from 10 to 120 mm. Wholesale supply with OEM/ODM customization.
Specifications
- Series
- 113
- Material
- Stainless steel
- Shank diameters (A)
- 5 / 6 / 8 / 10 / 12 / 16 / 20 mm
- A tolerance
- -0.08 / -0.04 mm
- Grip length (L)
- 10 - 120 mm, selectable (20 options)
- L tolerance
- +0.5 / 0 mm
- Application
- Fixtures, jigs, and quick-change assemblies
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

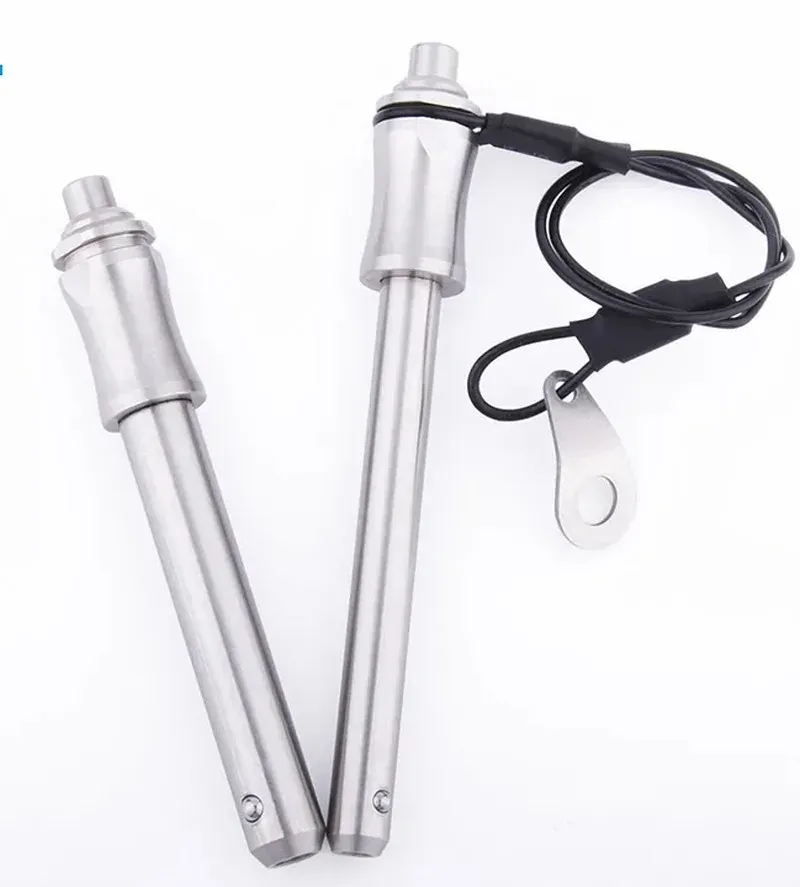

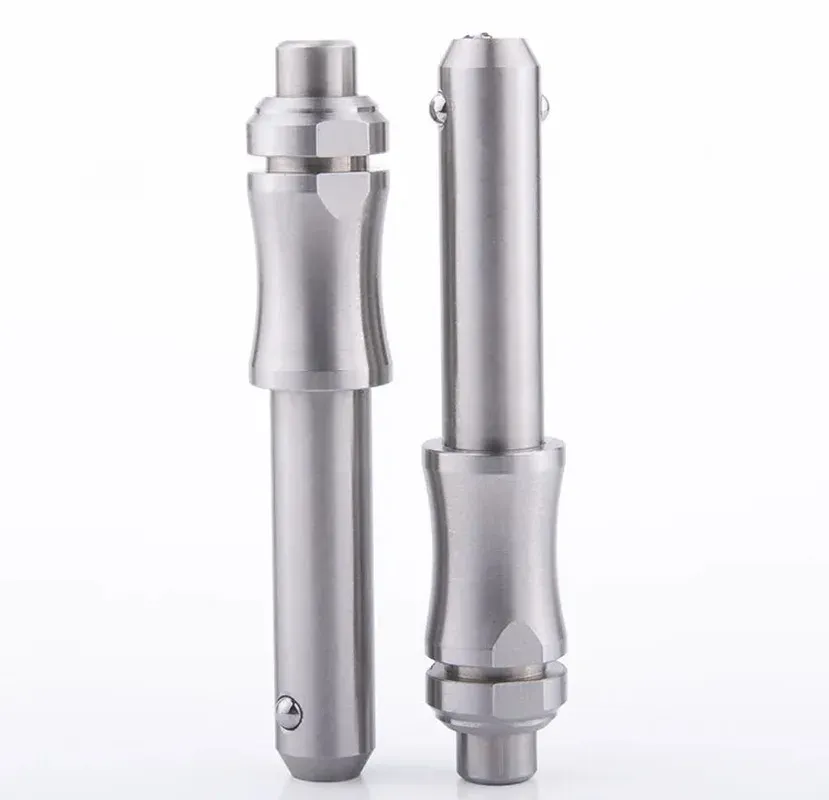

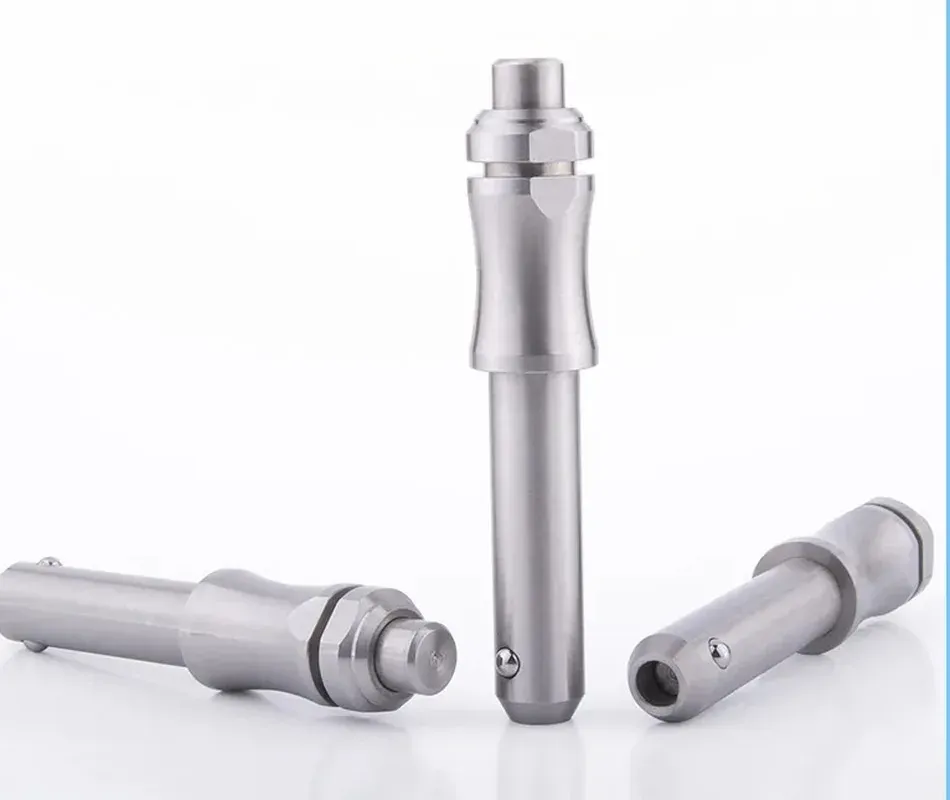

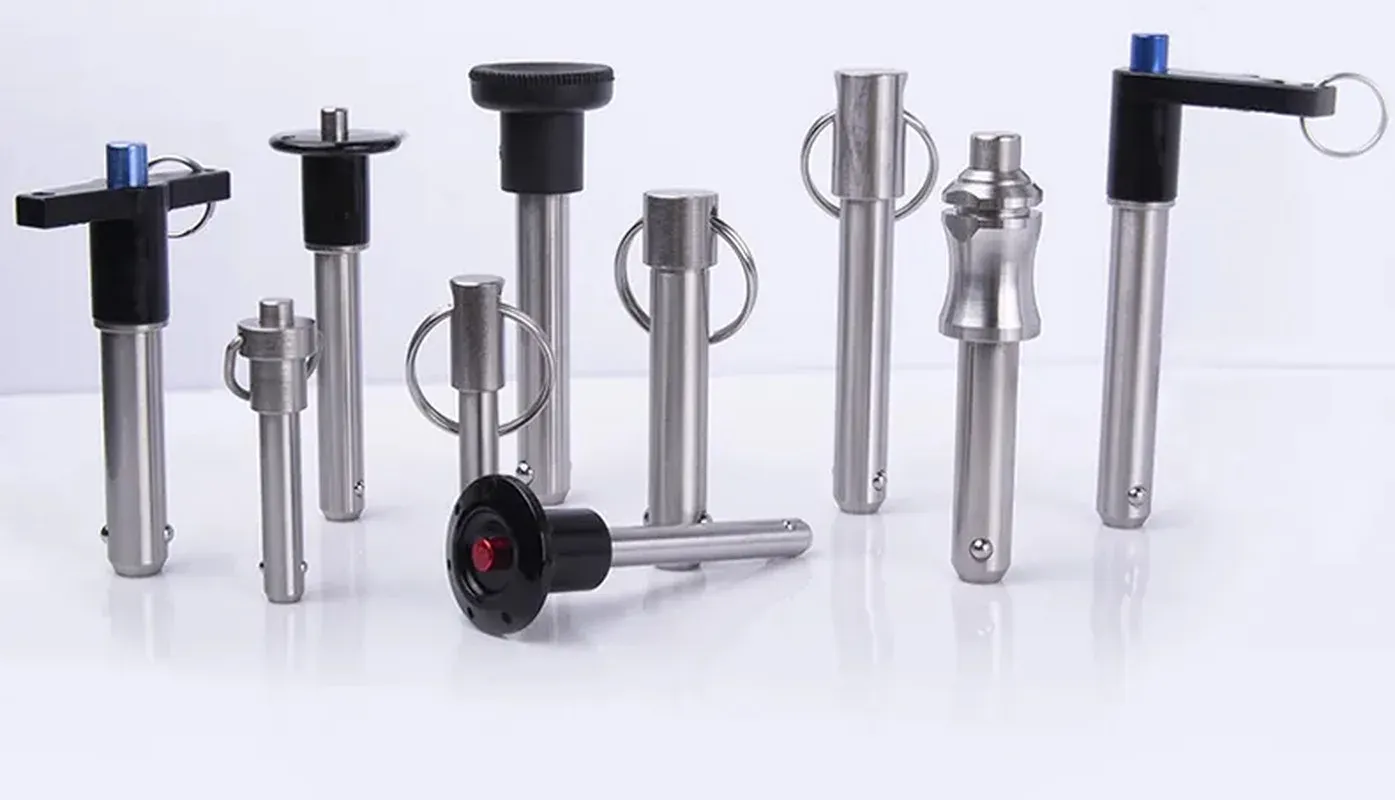

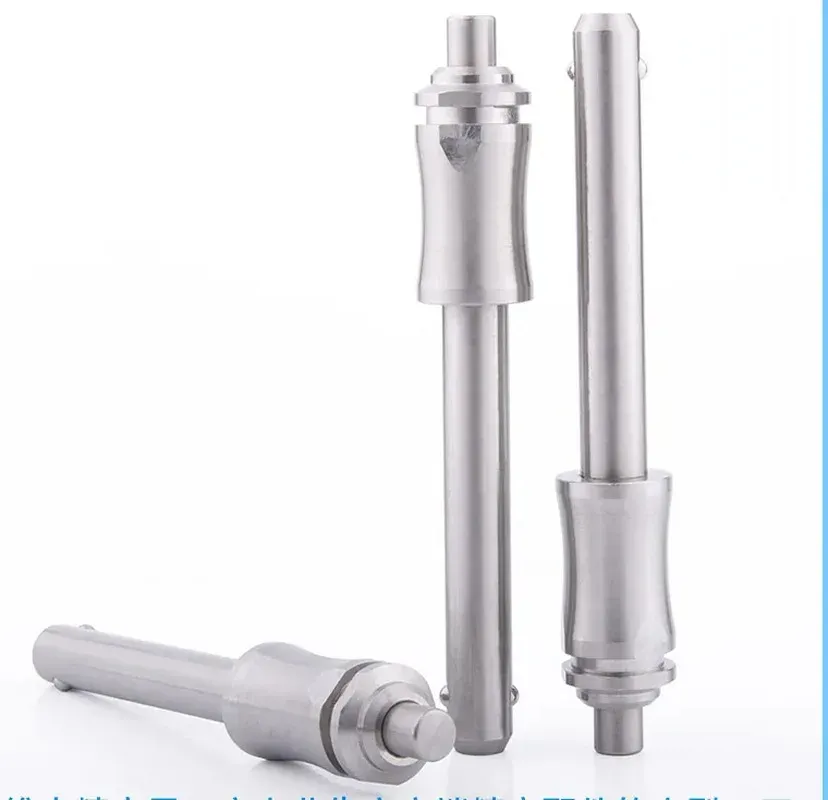

The 113 series is a push button quick release pin - a stainless steel ball lock pin that locks into place with spring-loaded balls and releases with a press of the button, so molds, fixtures, and equipment can be reconfigured without tools. It is available in the range of handle styles shown in the product photos.
Available Sizes and Options

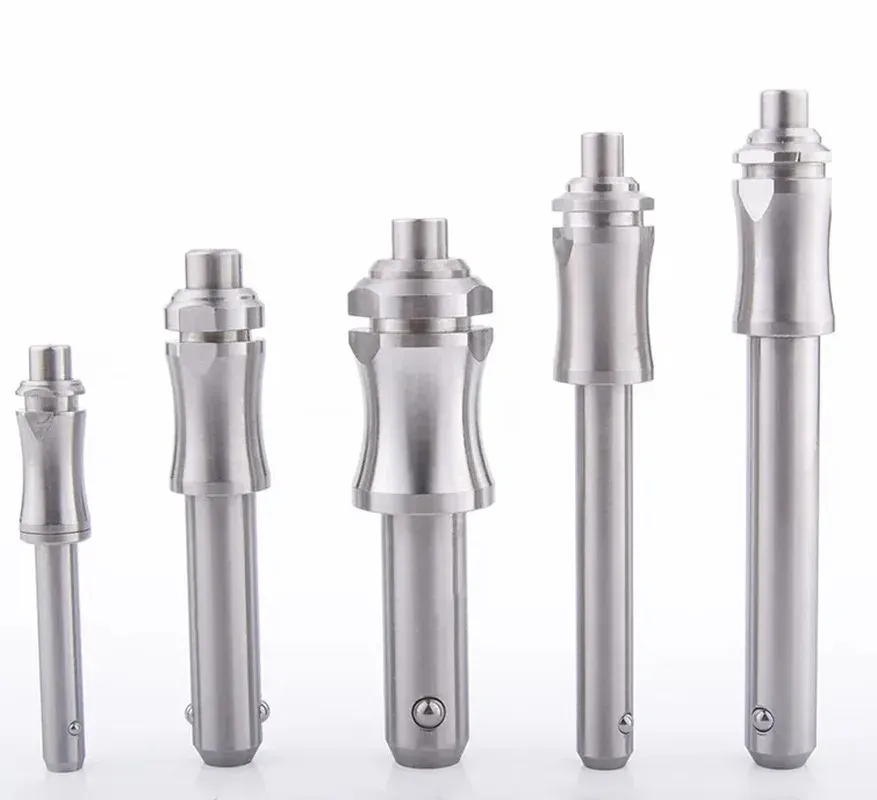

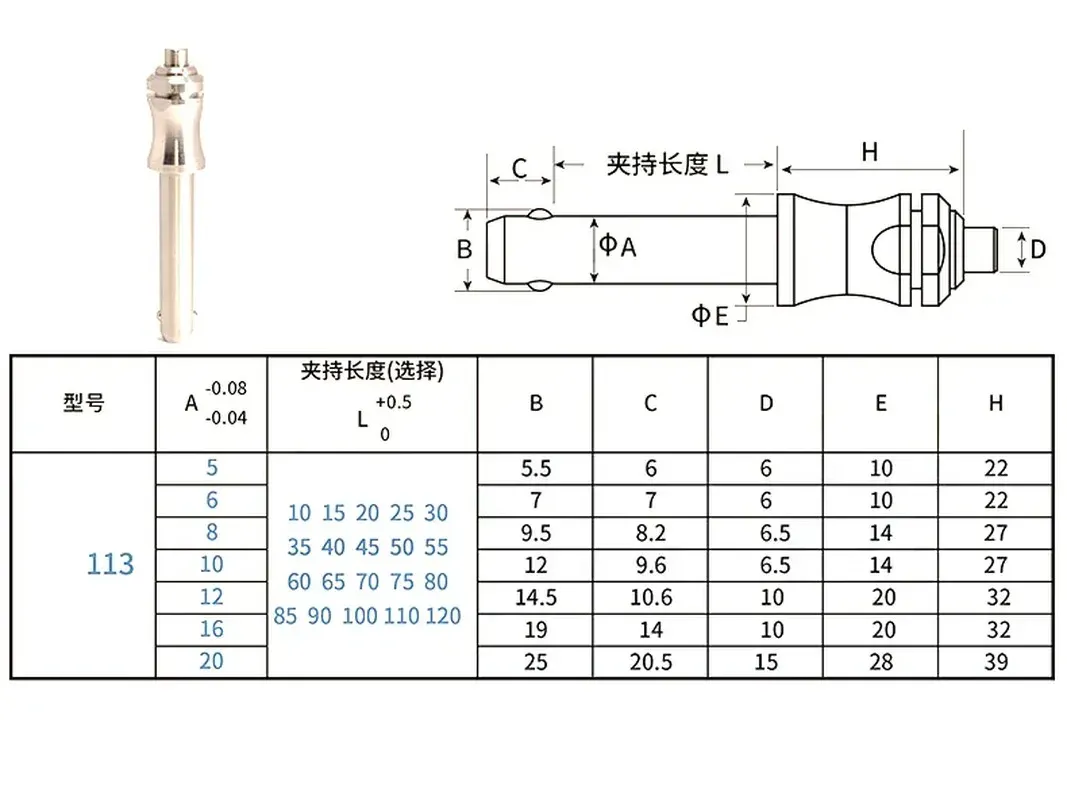

This push button quick release pin range covers seven shank diameters - 5, 6, 8, 10, 12, 16, and 20 mm (A tolerance -0.08/-0.04 mm) - with selectable grip lengths of 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, and 120 mm (L tolerance +0.5/0 mm). See the dimension drawing and table below; other handle styles and special sizes are quoted from your drawing under our OEM/ODM service.
113 dimensions (mm). A = shank diameter; L = grip length (selectable per order).
Model | A (-0.08/-0.04) | B | C | D | E | H |
|---|---|---|---|---|---|---|
113 | 5 | 5.5 | 6 | 6 | 10 | 22 |
113 | 6 | 7 | 7 | 6 | 10 | 22 |
113 | 8 | 9.5 | 8.2 | 6.5 | 14 | 27 |
113 | 10 | 12 | 9.6 | 6.5 | 14 | 27 |
113 | 12 | 14.5 | 10.6 | 10 | 20 | 32 |
113 | 16 | 19 | 14 | 10 | 20 | 32 |
113 | 20 | 25 | 20.5 | 15 | 28 | 39 |
Materials and Finishes
Stainless steel; other materials and finishes are quoted from your drawing.
Applications
Molds, fixtures, jigs, and equipment where components must change over quickly without tools. Push button locking pins suit one-hand changeovers on machine guards, covers, and tooling. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote a push button quick release pin?
A: The pin type, shank diameter, grip length, handle style, material, and quantity. A drawing or sample speeds everything up.
Q: Can you match an existing pin?
A: Yes. Send the sample or a drawing and we manufacture to match.
Q: Do you ship worldwide?
A: Yes. We supply B2B customers worldwide from Shenzhen with export packing.
Q: Can these push button quick release pins be used in molds?
A: Yes. Push button locking pins are commonly used in molds, fixtures, and quick-change tooling. Send us your application details and we will advise the right configuration.
