Ball Lock Pin
Ring Grip Quick Release Pins
Ring grip quick release pins - with round pull rings and push-button styles. Wholesale supply with OEM/ODM customization.
Specifications
- Material
- Stainless steel
- Handle
- Round pull ring (push-button styles available)
- Sizes
- Standard and custom sizes to drawing
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

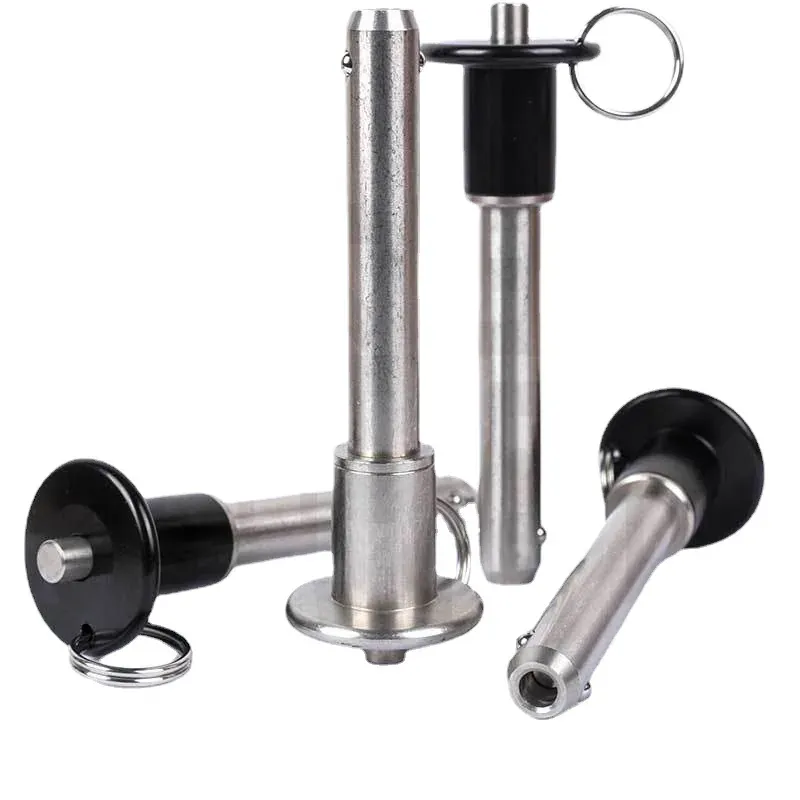

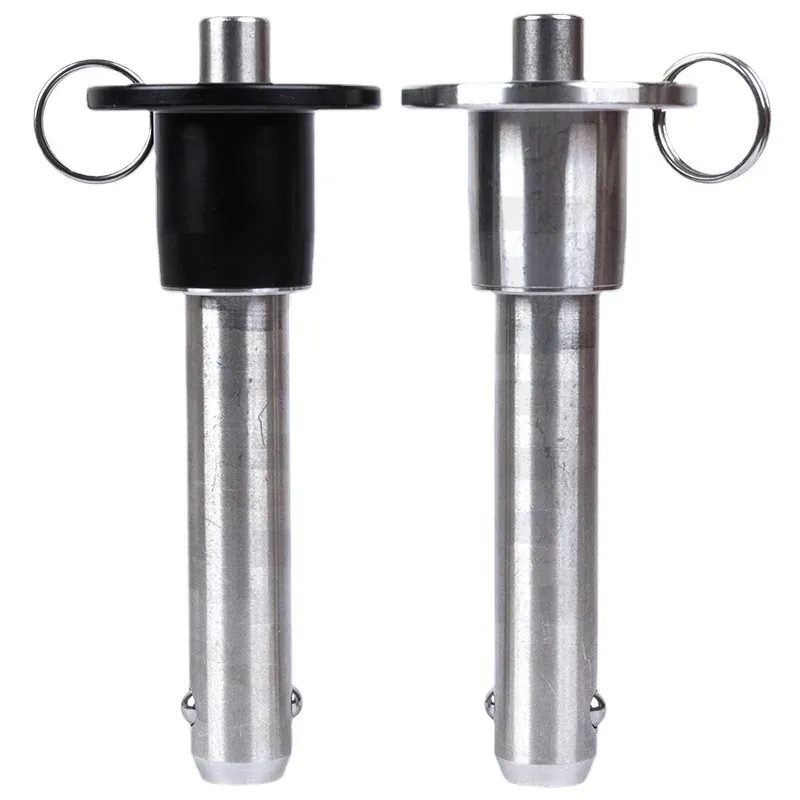

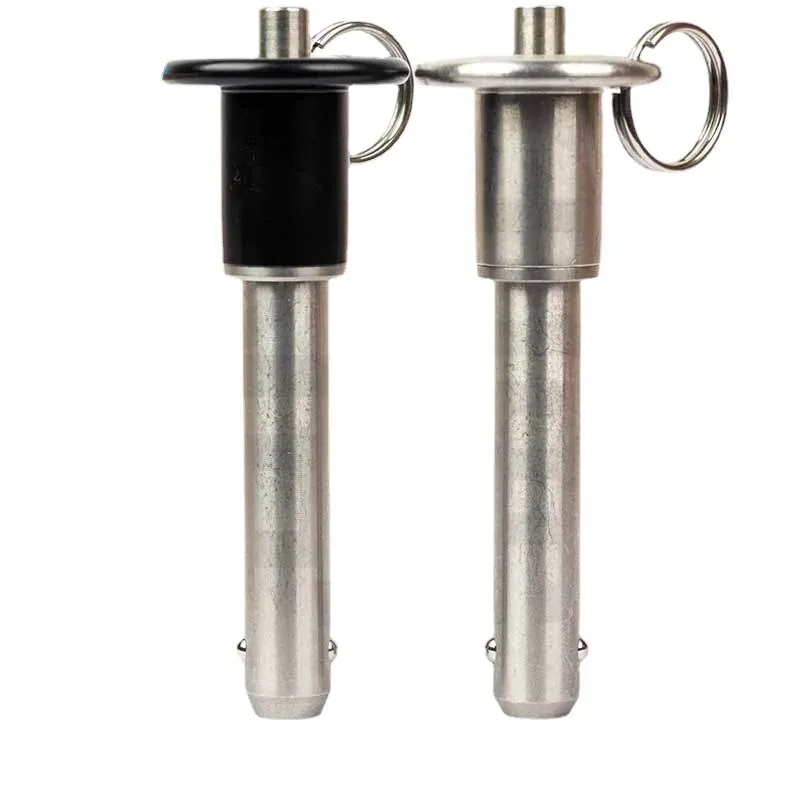

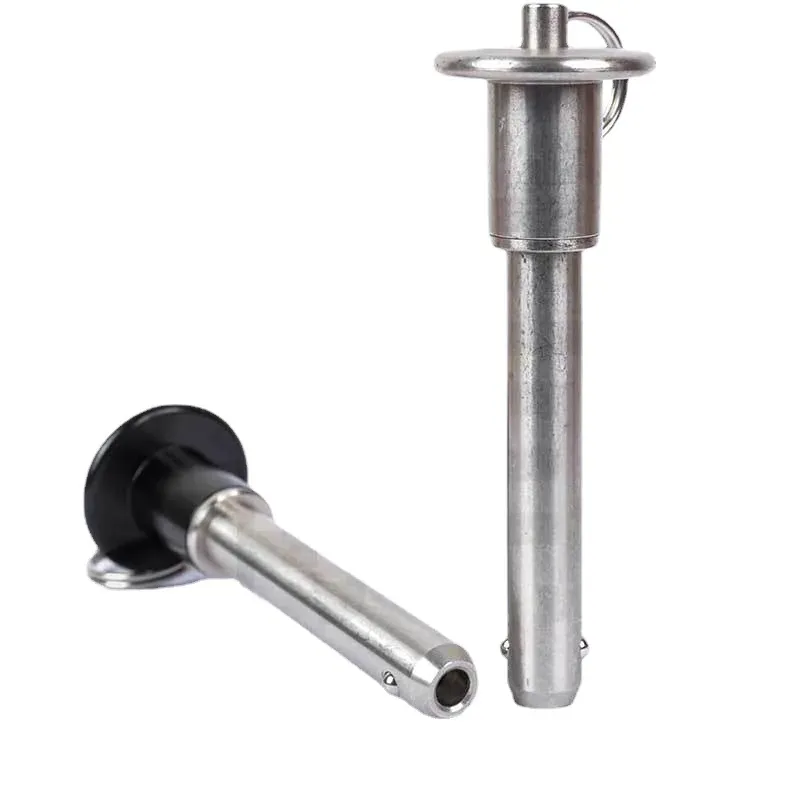

Ring grip quick release pins with round pull rings, including push-button styles with rings as shown in the product photos.
Available Sizes and Options
Standard and custom sizes: tell us the shank diameter, grip length, and quantity you need, or send a drawing - we manufacture to specification under our OEM/ODM service.

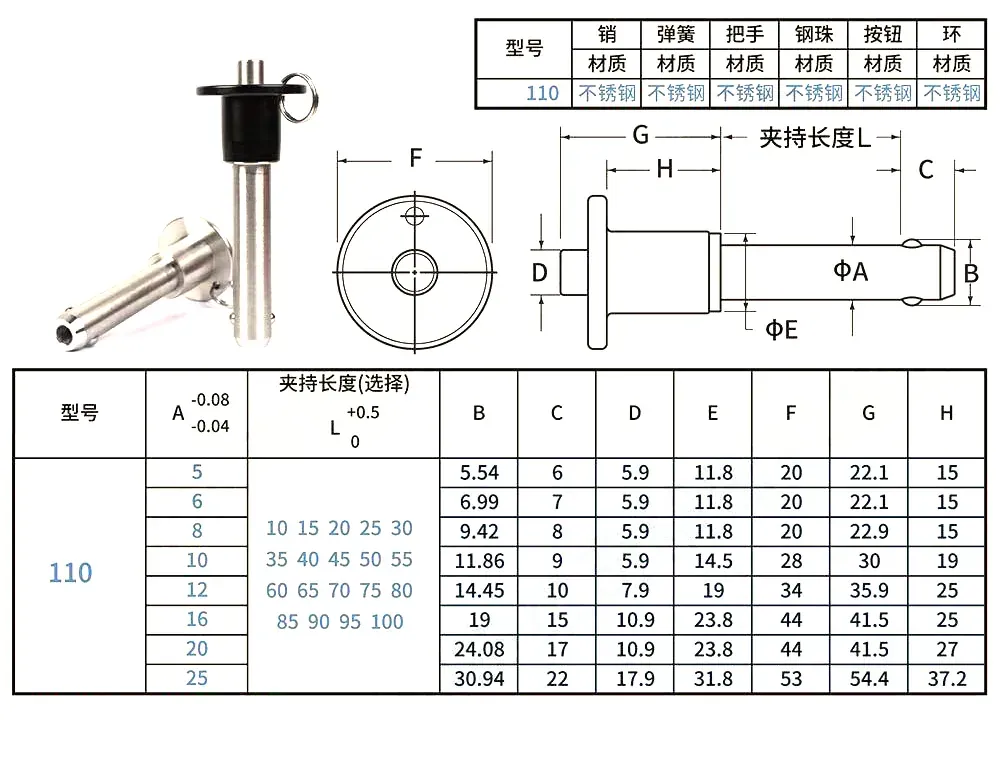

Model 110 dimensions (mm). Shank A tolerance -0.08/-0.04; grip length L +0.5/0. Grip lengths by size: A5-A8: 10, 15, 20, 25, 30; A10: 35-55; A12: 60-80; A16: 85-100 (from the specification sheet in the product photos):
A (shank dia) | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
5 | 5.54 | 6 | 5.9 | 11.8 | 20 | 22.1 | 15 |
6 | 6.99 | 7 | 5.9 | 11.8 | 20 | 22.1 | 15 |
8 | 9.42 | 8 | 5.9 | 11.8 | 20 | 22.9 | 15 |
10 | 11.86 | 9 | 5.9 | 14.5 | 28 | 30 | 19 |
12 | 14.45 | 10 | 7.9 | 19 | 34 | 35.9 | 25 |
16 | 19 | 15 | 10.9 | 23.8 | 44 | 41.5 | 25 |
20 | 24.08 | 17 | 10.9 | 23.8 | 44 | 41.5 | 27 |
25 | 30.94 | 22 | 17.9 | 31.8 | 53 | 54.4 | 37.2 |
Model 110 materials: pin, spring, handle, ball, button, and ring are all stainless steel (from the same specification sheet).
Model | Pin | Spring | Handle | Ball | Button | Ring |
|---|---|---|---|---|---|---|
110 | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Materials and Finishes
Stainless steel. Special material and finish requirements follow your drawing.
Applications
Fixtures, jigs, and equipment where components must change over quickly without tools. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The pin type, sizes, material, handle style, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a sample?
A: Yes. Send the sample or a drawing and we manufacture to match.
Q: Do you ship worldwide?
A: Yes. We supply B2B customers worldwide from Shenzhen with export packing.
