Indexing Plunger
Stainless Steel Indexing Plungers
Stainless steel indexing plungers - with external threads and knurled heads, in stainless steel. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Indexing plunger
- Handle
- Knurled head, external thread
- Thread / sizes
- Standard and custom sizes to drawing
- Material
- Stainless steel
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview
Stainless steel indexing plungers: press or pull the handle to retract the spring-loaded pin, reposition the part, and release to lock. Stainless Steel Indexing Plungers are shown in the product photos.
Available Sizes and Options
Standard and custom sizes: tell us the thread size, plunger length, and quantity you need, or send a drawing - we manufacture to specification under our OEM/ODM service.

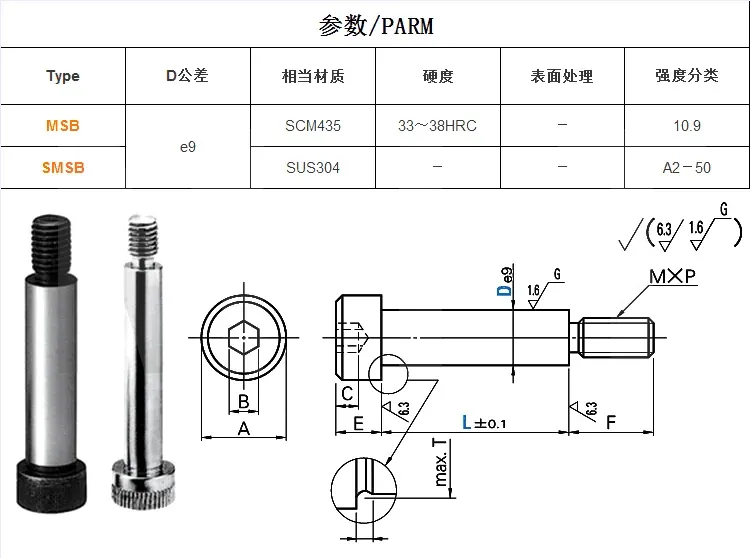

Types and materials (MSB / SMSB) (from the specification sheet in the product photos):
Type | D tolerance | Material | Hardness | Surface treatment | Strength class |
|---|---|---|---|---|---|
MSB | e9 | SCM435 | 33 - 38 HRC | - | 10.9 |
SMSB | e9 | SUS304 | - | - | A2-50 |

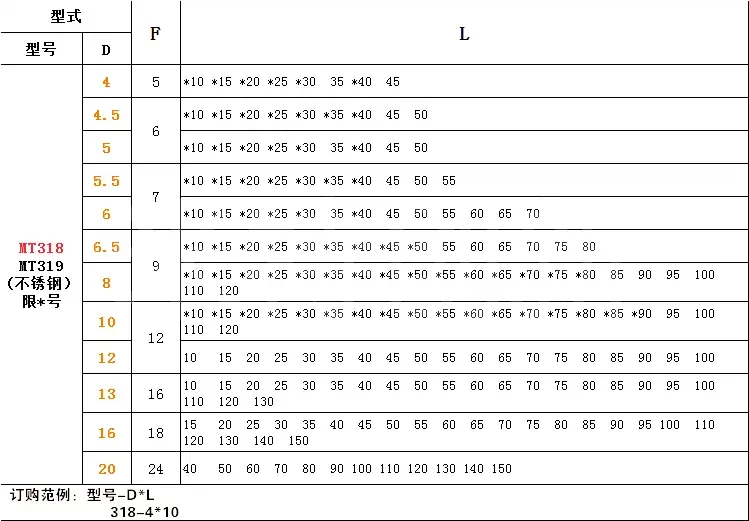

Shoulder diameters D and lengths L (mm). An asterisk (*) marks the sizes also available in stainless steel MT319; ordering example: 318-4*10 (from the specification sheet in the product photos):
D | F | L |
|---|---|---|
4 | 5 | *10, *15, *20, *25, *30, 35, *40, 45 |
4.5 | 6 | *10, *15, *20, *25, *30, *35, *40, 45, 50 |
5 | 6 | *10, *15, *20, *25, *30, 35, *40, 45, 50 |
5.5 | 7 | *10, *15, *20, *25, *30, *35, *40, 45, 50, 55 |
6 | 7 | *10, *15, *20, *25, *30, 35, *40, 45, 50, 55, 60, 65, 70 |
6.5 | 9 | *10, *15, *20, *25, *30, *35, *40, *45, *50, 55, 60, 65, 70, 75, 80 |
8 | 9 | *10, *15, *20, *25, *30, *35, *40, *45, *50, *55, *60, *65, *70, *75, *80, 85, 90, 95, 100, 110, 120 |
10 | 12 | *10, *15, *20, *25, *30, *35, *40, *45, *50, *55, *60, *65, *70, *75, *80, *85, *90, 95, 100, 110, 120 |
12 | 12 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 |
13 | 16 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130 |
16 | 18 | 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140, 150 |
20 | 24 | 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150 |

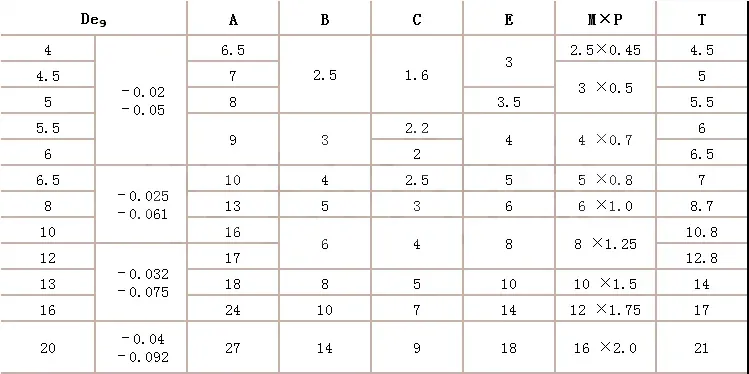

Head dimensions (mm), D tolerance e9 (from the specification sheet in the product photos):
D | D tolerance | A | B | C | E | M x P | T |
|---|---|---|---|---|---|---|---|
4 | -0.02/-0.05 | 6.5 | 2.5 | 1.6 | 3 | 2.5x0.45 | 4.5 |
4.5 | -0.02/-0.05 | 7 | 2.5 | 1.6 | 3 | 3x0.5 | 5 |
5 | -0.02/-0.05 | 8 | 2.5 | 1.6 | 3.5 | 3x0.5 | 5.5 |
5.5 | -0.02/-0.05 | 9 | 3 | 2.2 | 4 | 4x0.7 | 6 |
6 | -0.02/-0.05 | 9 | 3 | 2 | 4 | 4x0.7 | 6.5 |
6.5 | -0.025/-0.061 | 10 | 4 | 2.5 | 5 | 5x0.8 | 7 |
8 | -0.025/-0.061 | 13 | 5 | 3 | 6 | 6x1.0 | 8.7 |
10 | -0.025/-0.061 | 16 | 6 | 4 | 8 | 8x1.25 | 10.8 |
12 | -0.032/-0.075 | 17 | 6 | 4 | 8 | 8x1.25 | 12.8 |
13 | -0.032/-0.075 | 18 | 8 | 5 | 10 | 10x1.5 | 14 |
16 | -0.032/-0.075 | 24 | 10 | 7 | 14 | 12x1.75 | 17 |
20 | -0.04/-0.092 | 27 | 14 | 9 | 18 | 16x2.0 | 21 |
Materials and Finishes
Stainless steel. Special material and finish requirements follow your drawing.
Applications
Machine builds, fixtures, jigs, and adjustable stops where parts must be positioned or indexed without tools. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The plunger type, thread size, plunger length, material, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a sample?
A: Yes. Send the sample or a drawing and we manufacture to match.
Q: Do you ship worldwide?
A: Yes. We supply B2B customers worldwide from Shenzhen with export packing.
