Ball Lock Pin
Stainless Steel Quick Release Pins - Y3 Series
Stainless steel quick release pins - the Y3 series with black push-button handle and lanyard ring, in eight shank diameters from 5 to 25 mm with selectable grip lengths from 10 to 100 mm. Wholesale supply with OEM/ODM customization.
Specifications
- Series
- Y3 (N171)
- Handle
- Black push-button handle with lanyard ring
- Shank diameters (ΦA)
- 5 / 6 / 8 / 10 / 12 / 16 / 20 / 25 mm
- ΦA tolerance
- -0.08 / -0.04 mm
- Grip length (L)
- 10 - 100 mm, selectable (19 options)
- L tolerance
- +0.05 mm
- Material
- Stainless steel
- Application
- Fixtures, jigs, and quick-release assemblies
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

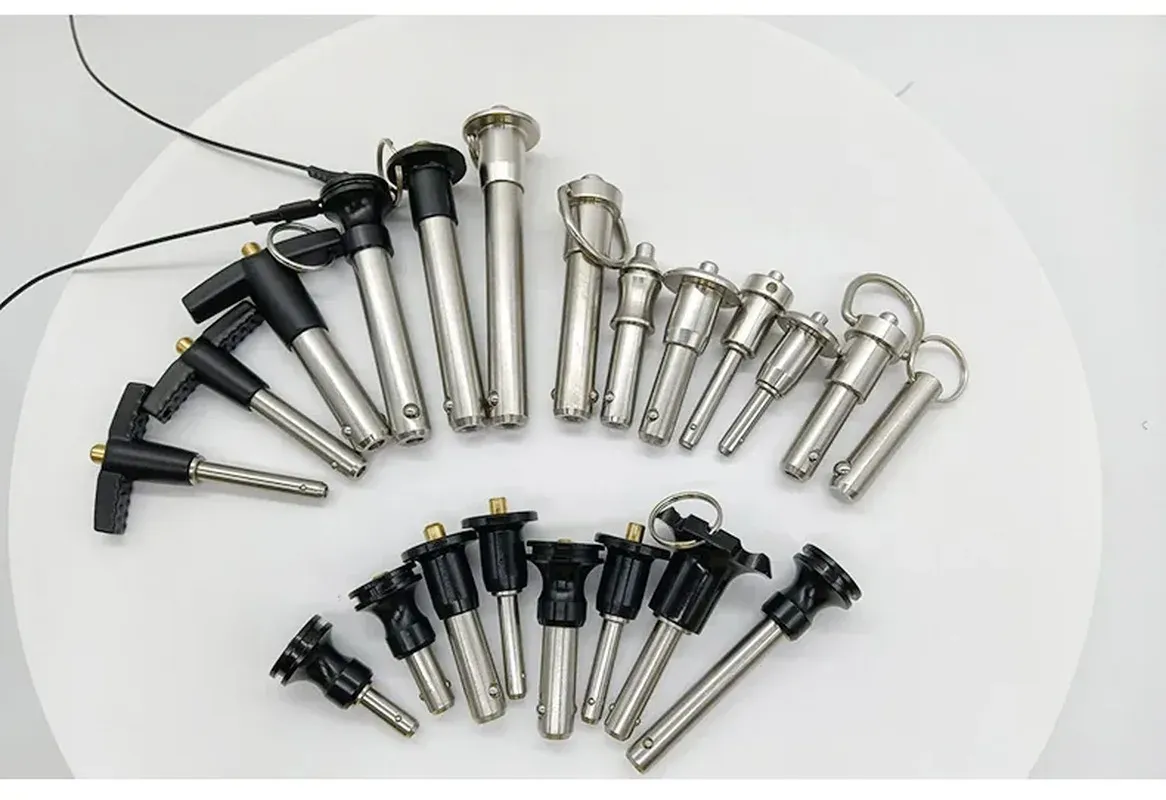

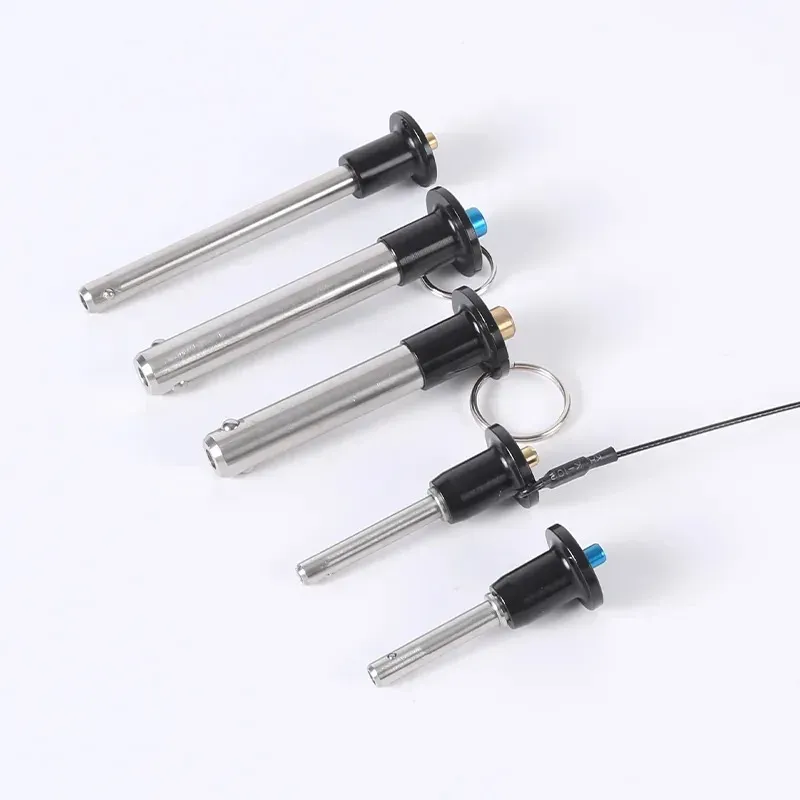

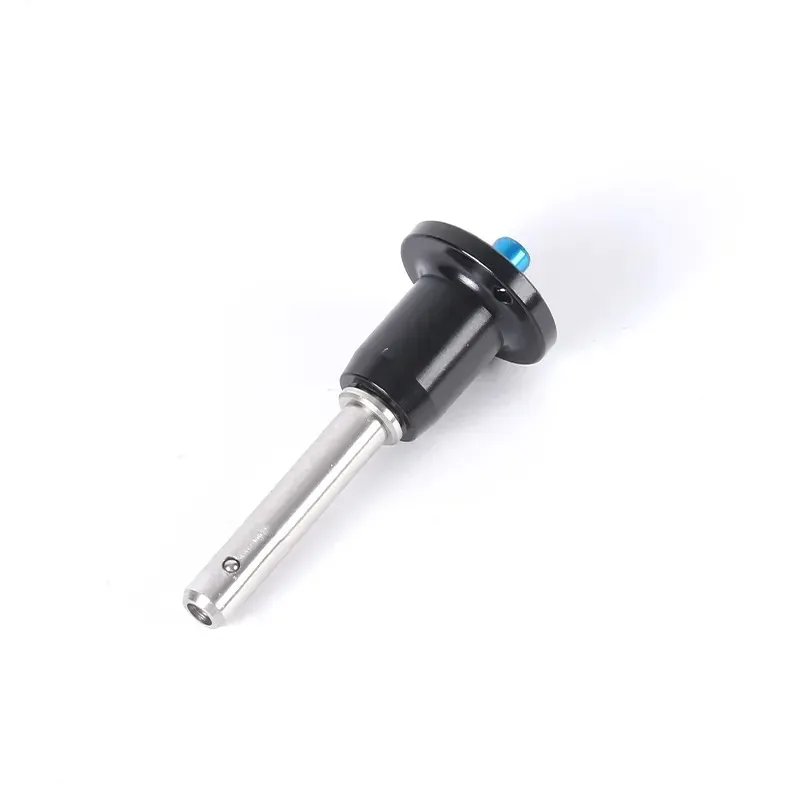

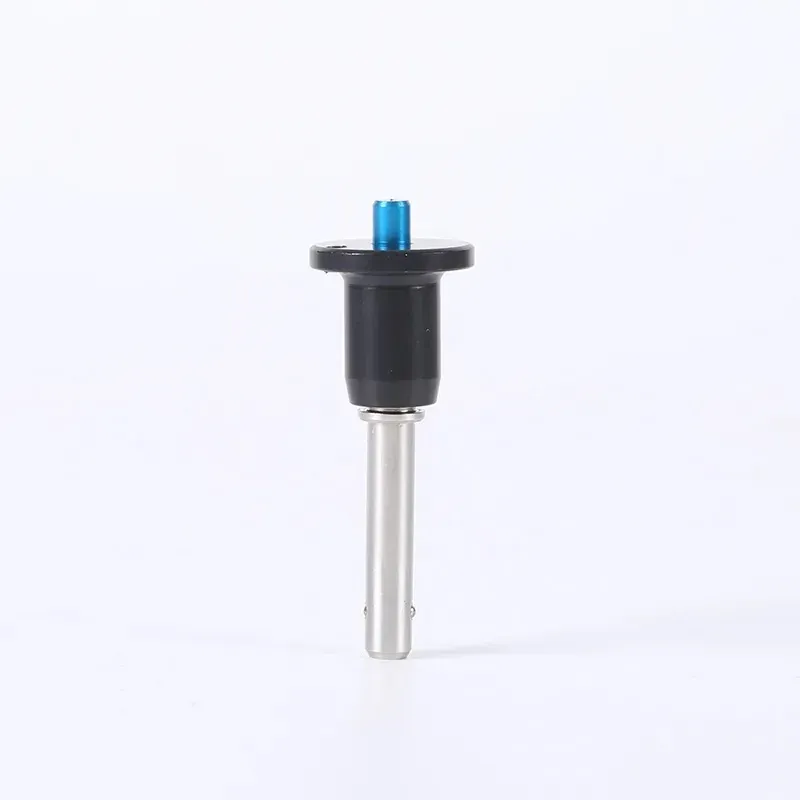

The Y3 series is a stainless steel quick release pin: the spring-loaded balls lock into place and release with a press of the button on the handle. The black push-button handle and lanyard ring keep the pin secure and easy to find.
Available Sizes and Options
This stainless steel quick release pin range covers eight shank diameters - 5, 6, 8, 10, 12, 16, 20, and 25 mm (tolerance -0.08/-0.04 mm) - with selectable grip lengths of 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, and 100 mm (L tolerance +0.05 mm). See the dimension drawing and table below; other handle styles and special sizes are quoted from your drawing under our OEM/ODM service.

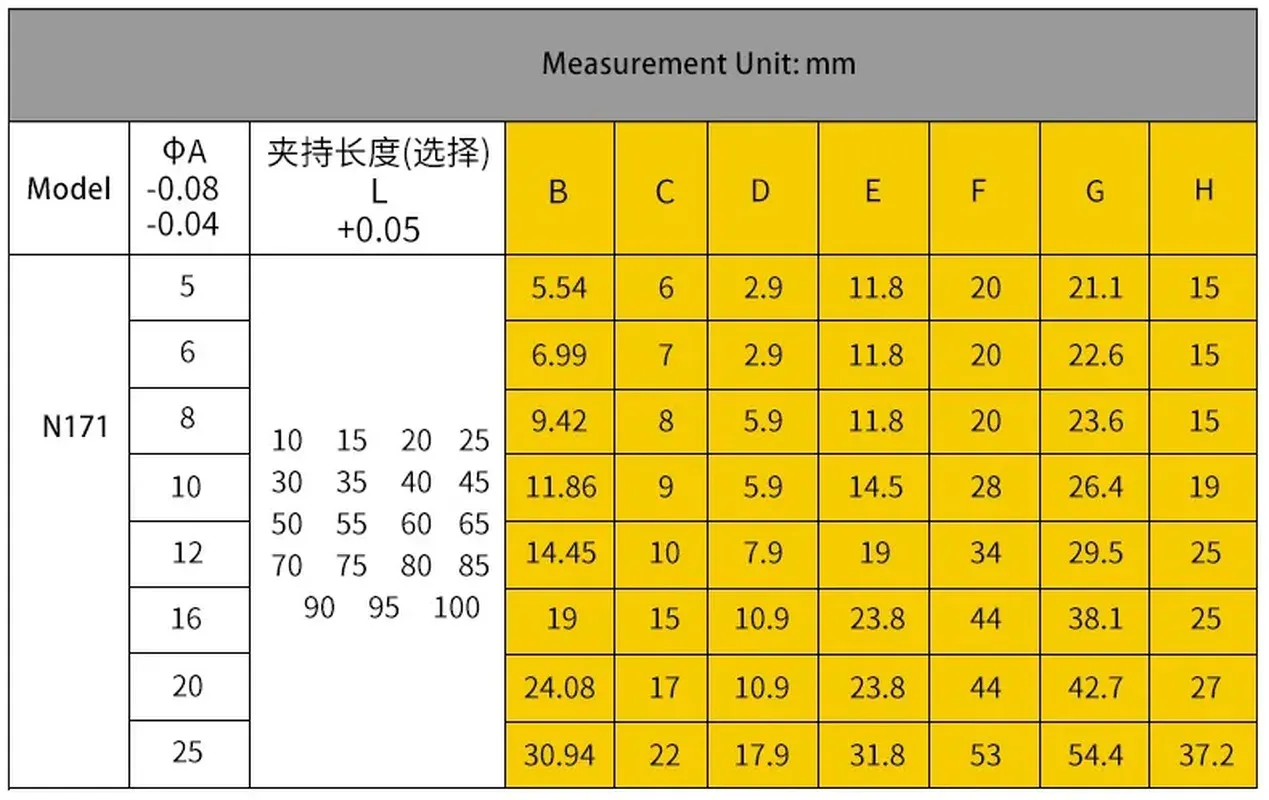

Y3 (N171) dimensions (mm). ΦA = shank diameter; L = grip length (selectable per order).
Model | ΦA (-0.08/-0.04) | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
N171 | 5 | 5.54 | 6 | 2.9 | 11.8 | 20 | 21.1 | 15 |
N171 | 6 | 6.99 | 7 | 2.9 | 11.8 | 20 | 22.6 | 15 |
N171 | 8 | 9.42 | 8 | 5.9 | 11.8 | 20 | 23.6 | 15 |
N171 | 10 | 11.86 | 9 | 5.9 | 14.5 | 28 | 26.4 | 19 |
N171 | 12 | 14.45 | 10 | 7.9 | 19 | 34 | 29.5 | 25 |
N171 | 16 | 19 | 15 | 10.9 | 23.8 | 44 | 38.1 | 25 |
N171 | 20 | 24.08 | 17 | 10.9 | 23.8 | 44 | 42.7 | 27 |
N171 | 25 | 30.94 | 22 | 17.9 | 31.8 | 53 | 54.4 | 37.2 |
Materials and Finishes
Stainless steel pins with black push-button handle and lanyard ring, as shown in the product photos. Special material and finish requirements follow your drawing specification.
Applications
Outdoor, humid, and marine environments suit stainless steel quick release pins, along with fixtures and quick-change assemblies. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
