Indexing Plunger
Straight Index Plungers
Straight index plungers - with straight threaded bodies and blue screw-lever grips. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Indexing plunger
- Handle
- Straight body with screw lever (see photos)
- Thread / sizes
- Standard and custom sizes to drawing
- Material
- Per drawing specification
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

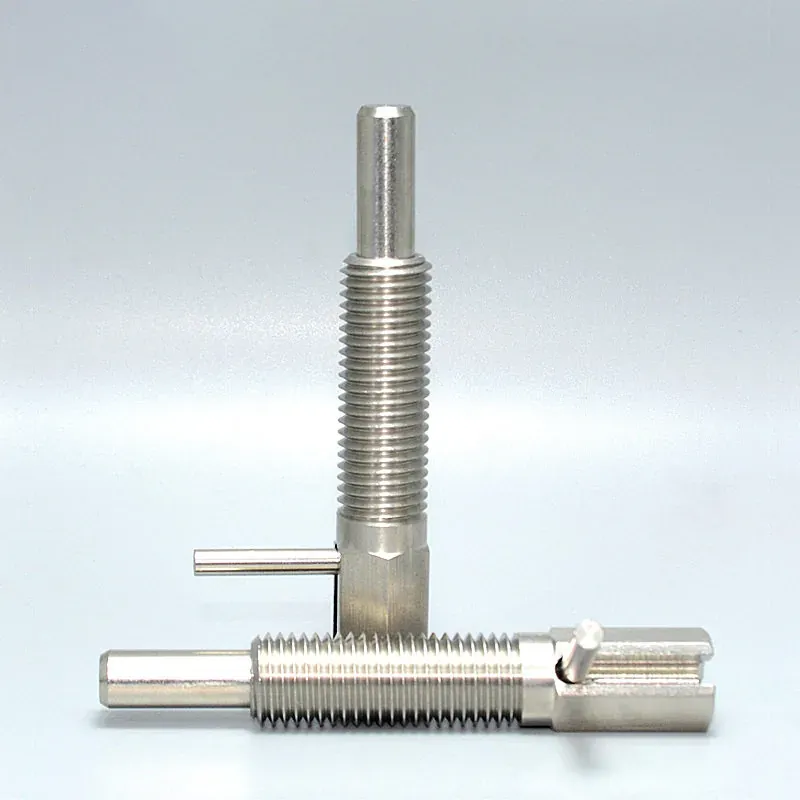

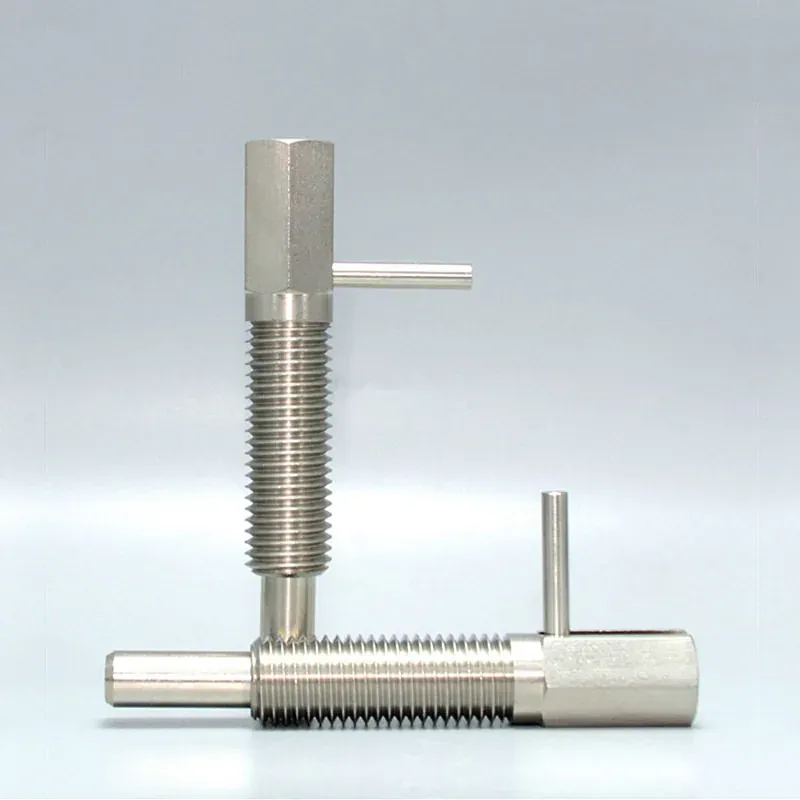

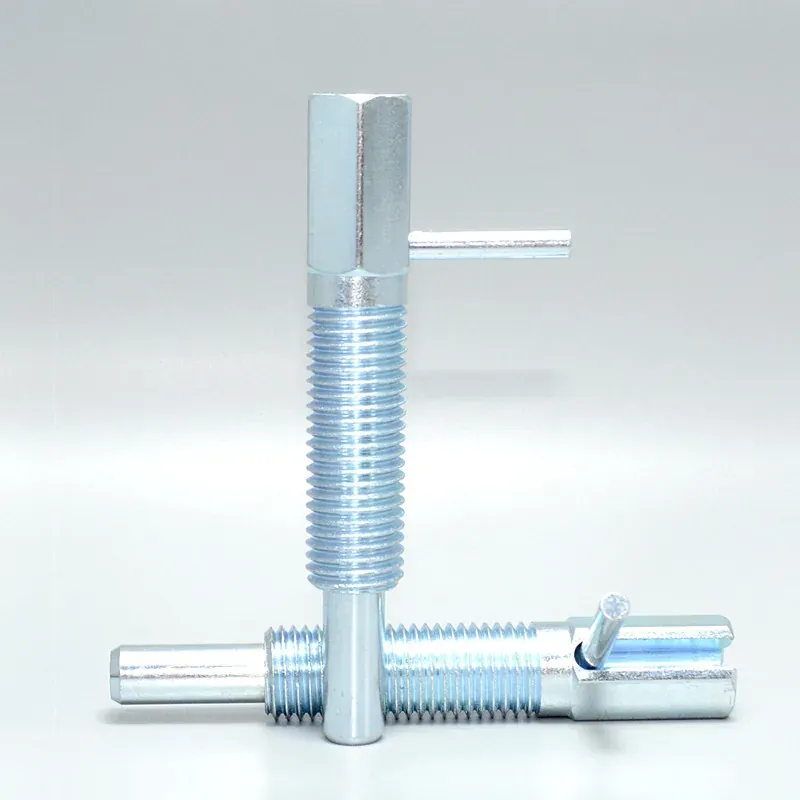

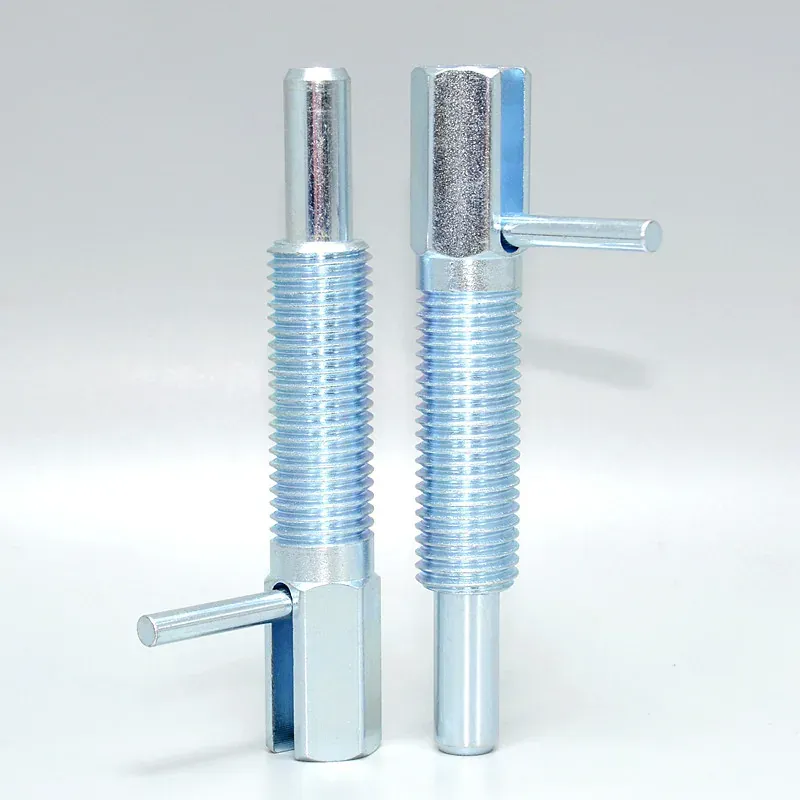

Straight index plungers: press or pull the handle to retract the spring-loaded pin, reposition the part, and release to lock. Straight Index Plungers are shown in the product photos.
Available Sizes and Options
Standard and custom sizes: tell us the thread size, plunger length, and quantity you need, or send a drawing - we manufacture to specification under our OEM/ODM service.
Types and materials (from the specification sheet in the product photos):
Type | Thread | Body | Handle | Pin |
|---|---|---|---|---|
MIT211 | Coarse | Stainless steel | Stainless steel | Stainless steel |
MIT211C | Coarse | Carbon steel | Carbon steel | Carbon steel |

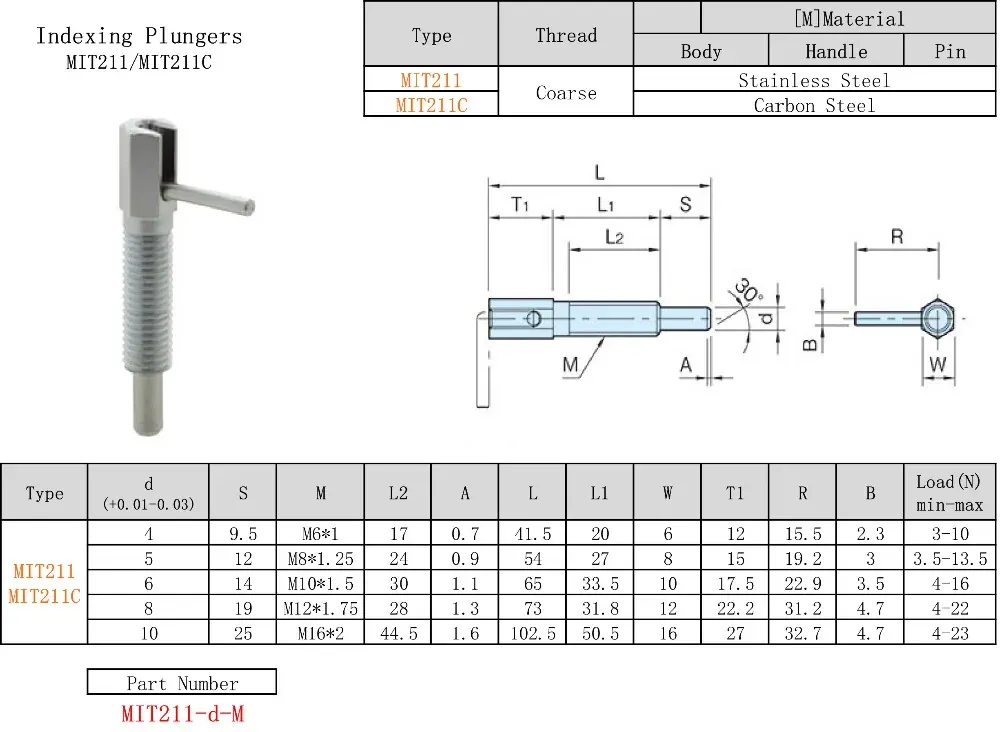

Dimensions (mm), d tolerance +0.01/-0.03 (from the specification sheet in the product photos):
d | S | M | L2 | A | L | L1 | W | T1 | R | B | Load min-max (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
4 | 9.5 | M6x1 | 17 | 0.7 | 41.5 | 20 | 6 | 12 | 15.5 | 2.3 | 3 - 10 |
5 | 12 | M8x1.25 | 24 | 0.9 | 54 | 27 | 8 | 15 | 19.2 | 3 | 3.5 - 13.5 |
6 | 14 | M10x1.5 | 30 | 1.1 | 65 | 33.5 | 10 | 17.5 | 22.9 | 3.5 | 4 - 16 |
8 | 19 | M12x1.75 | 28 | 1.3 | 73 | 31.8 | 12 | 22.2 | 31.2 | 4.7 | 4 - 22 |
10 | 25 | M16x2 | 44.5 | 1.6 | 102.5 | 50.5 | 16 | 27 | 32.7 | 4.7 | 4 - 23 |
Materials and Finishes
Material and finish follow your drawing specification.
Applications
Machine builds, fixtures, jigs, and adjustable stops where parts must be positioned or indexed without tools. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
