Ball Lock Pin
T-Grip Quick Release Pins
T-grip quick release pins - with black grips and colored buttons. Wholesale supply with OEM/ODM customization.
Specifications
- Material
- Material and finish follow your drawing specification.
- Handle
- Black T-grip with colored button
- Sizes
- Standard and custom sizes to drawing
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

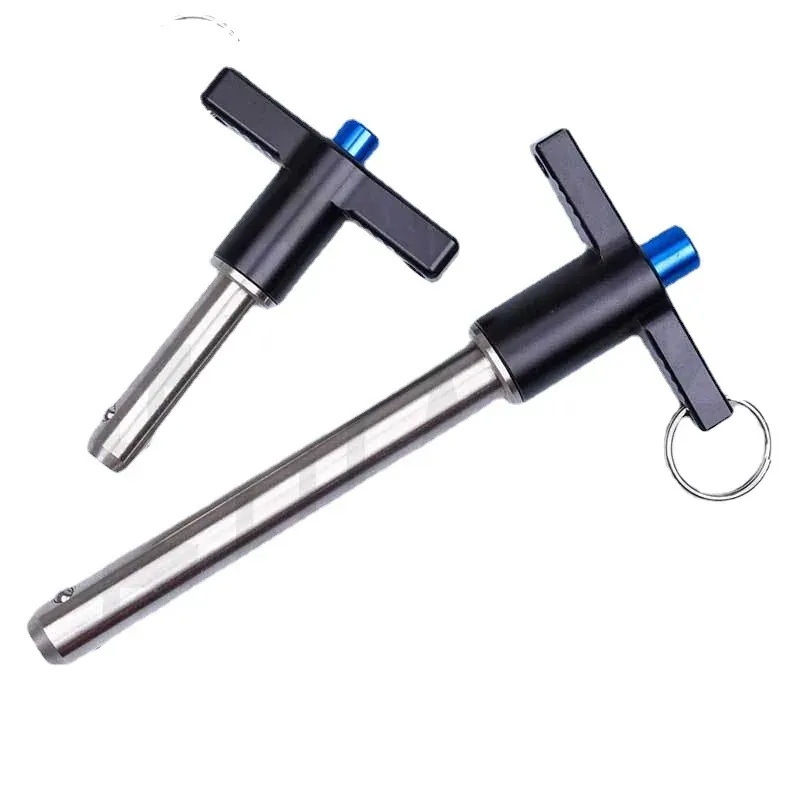

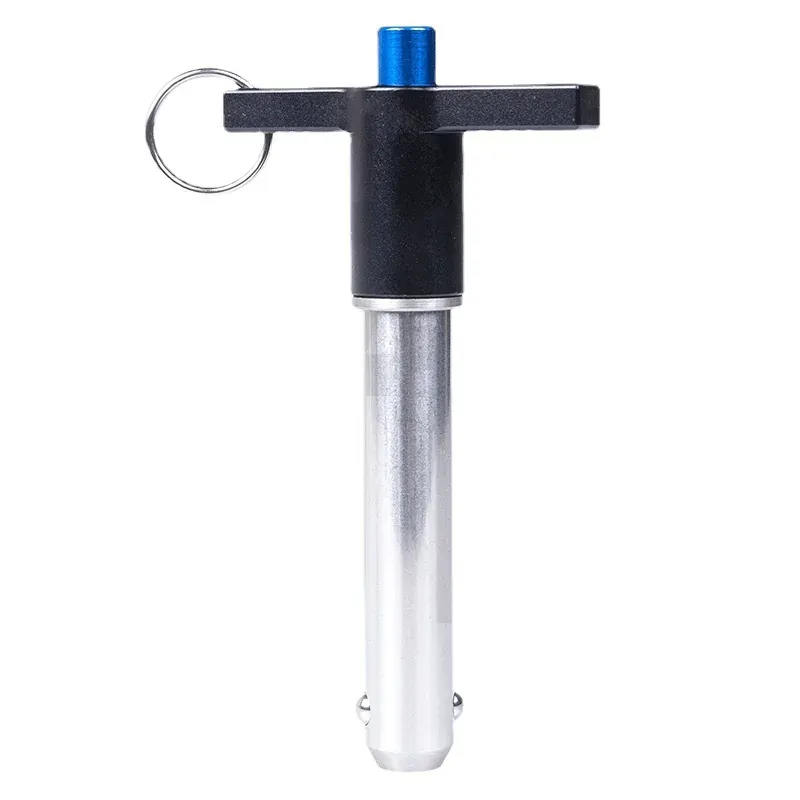

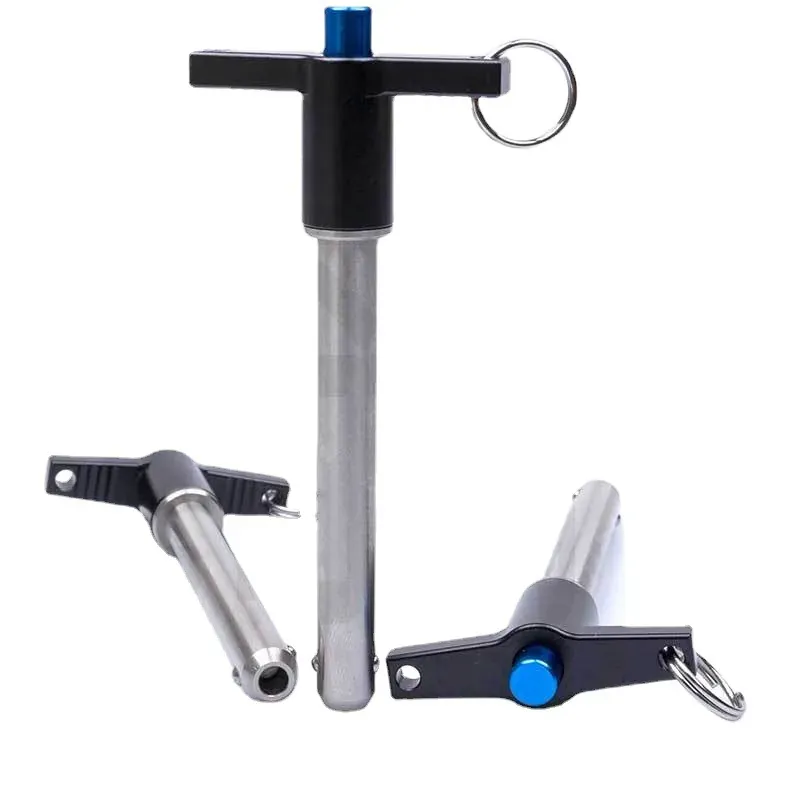

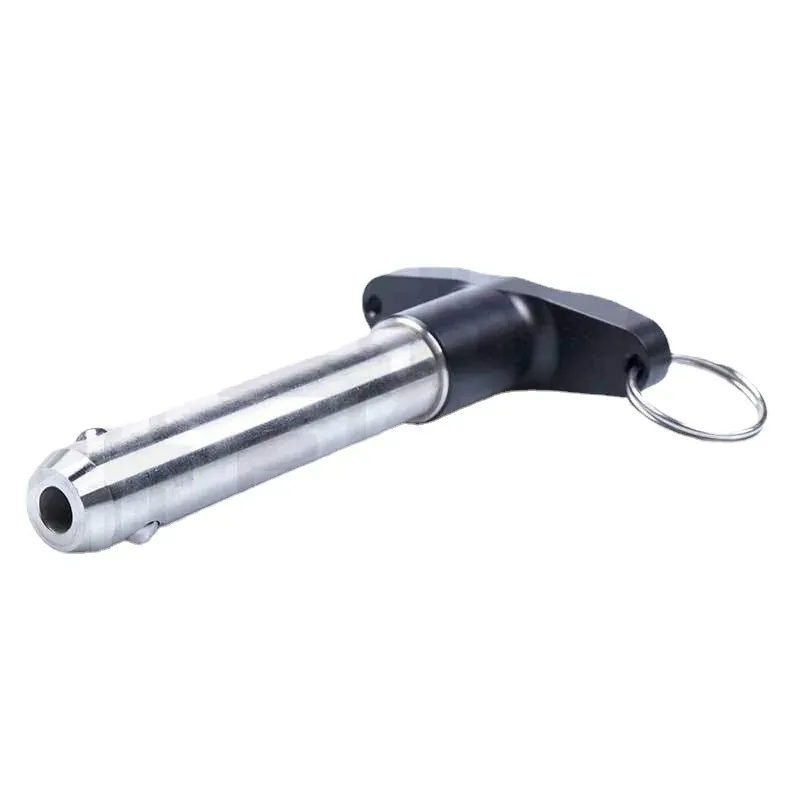

T-grip quick release pins with black grips and colored buttons, shown with and without lanyards in the product photos.
Available Sizes and Options
Standard and custom sizes: tell us the shank diameter, grip length, and quantity you need, or send a drawing - we manufacture to specification under our OEM/ODM service.
Materials (model 117) (from the specification sheet in the product photos):
Model | Pin | Spring | Handle | Ball | Button | Ring |
|---|---|---|---|---|---|---|
117 | Stainless steel | Stainless steel | Aluminum alloy | Stainless steel | Aluminum alloy | Stainless steel |

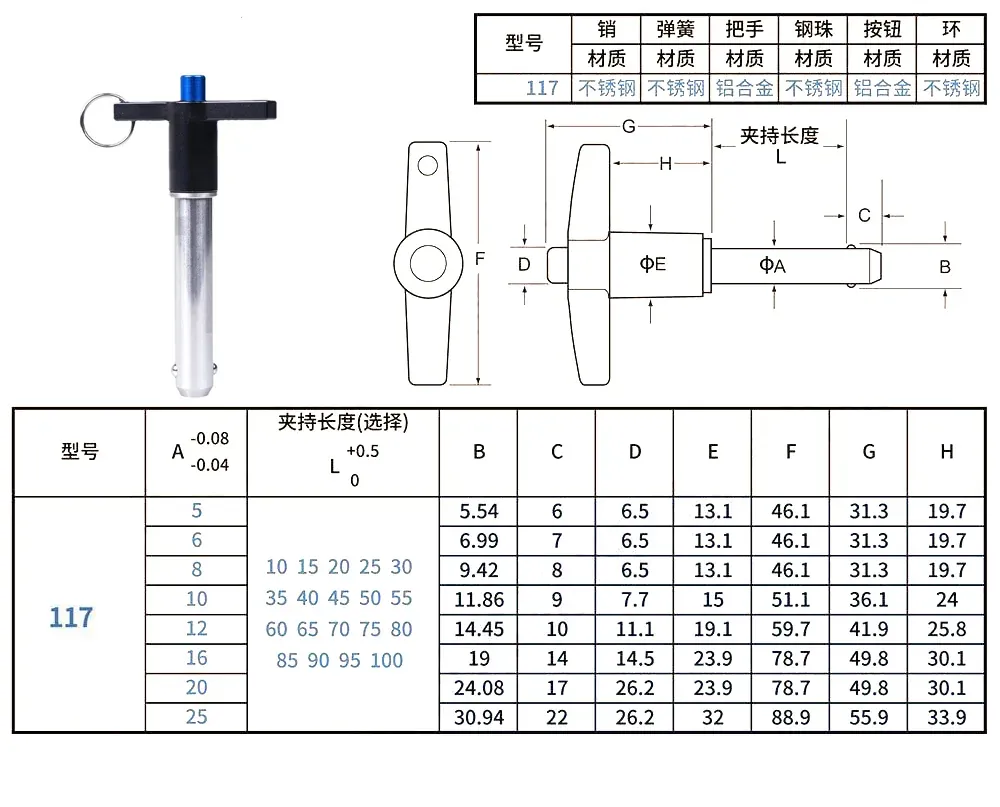

Dimensions (mm). Shank A tolerance -0.08/-0.04; grip length L +0.5/0. Grip lengths by size: A5-A8: 10, 15, 20, 25, 30; A10: 35-55; A12: 60-80; A16: 85-100 (from the specification sheet in the product photos):
A (shank dia) | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
5 | 5.54 | 6 | 6.5 | 13.1 | 46.1 | 31.3 | 19.7 |
6 | 6.99 | 7 | 6.5 | 13.1 | 46.1 | 31.3 | 19.7 |
8 | 9.42 | 8 | 6.5 | 13.1 | 46.1 | 31.3 | 19.7 |
10 | 11.86 | 9 | 7.7 | 15 | 51.1 | 36.1 | 24 |
12 | 14.45 | 10 | 11.1 | 19.1 | 59.7 | 41.9 | 25.8 |
16 | 19 | 14 | 14.5 | 23.9 | 78.7 | 49.8 | 30.1 |
20 | 24.08 | 17 | 26.2 | 23.9 | 78.7 | 49.8 | 30.1 |
25 | 30.94 | 22 | 26.2 | 32 | 88.9 | 55.9 | 33.9 |
Materials and Finishes
Material and finish follow your drawing specification.
Applications
Fixtures, jigs, and equipment where components must change over quickly without tools. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The pin type, sizes, material, handle style, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a sample?
A: Yes. Send the sample or a drawing and we manufacture to match.
Q: Do you ship worldwide?
A: Yes. We supply B2B customers worldwide from Shenzhen with export packing.
