Ball Lock Pin
T-Handle Quick Release Pins
T-handle quick release pins in the T1 series - SUS304 stainless steel pin, spring, and ball with an aluminum alloy handle, in eight shank diameters from 5 to 25 mm. Wholesale supply with OEM/ODM customization.
Specifications
- Series
- T1
- Material
- Pin, spring, and ball: SUS304 stainless steel; handle: aluminum alloy
- Operation
- Push-button ball lock, quick release
- Shank diameters (A)
- 5 / 6 / 8 / 10 / 12 / 16 / 20 / 25 mm
- Grip length (L)
- 10 - 100 mm in standard steps, per dimension table
- Grip length tolerance
- +0.5 / -0 mm
- Application
- Fixtures, dies, jigs, and quick-change tooling
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

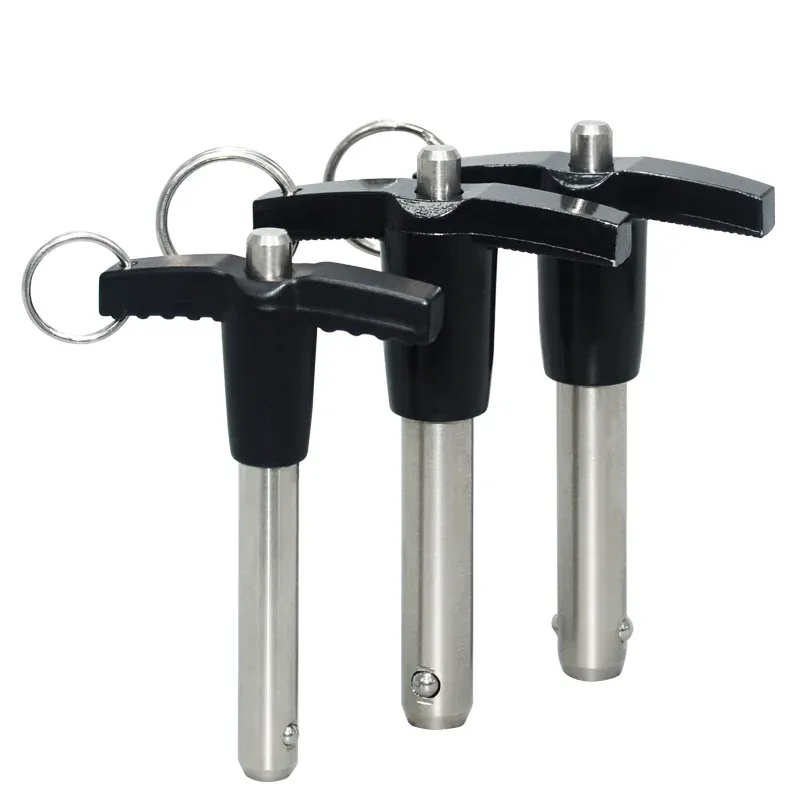

The T-handle quick release pin locks into place with spring-loaded balls and releases at the push of a button, so removable components swap in seconds. The molded black T-handle gives a firm pull grip.
Available Sizes and Options
This T-handle quick release pin range covers eight shank diameters - 5, 6, 8, 10, 12, 16, 20, and 25 mm - with grip lengths from 10 mm to 100 mm (tolerance +0.5/-0 mm). The full dimension table is shown in the product photos; other handle styles, and any special sizes, are quoted from your drawing under our OEM/ODM service.

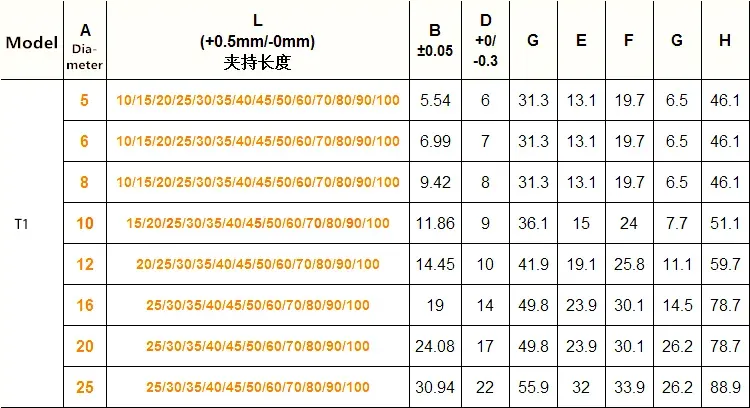

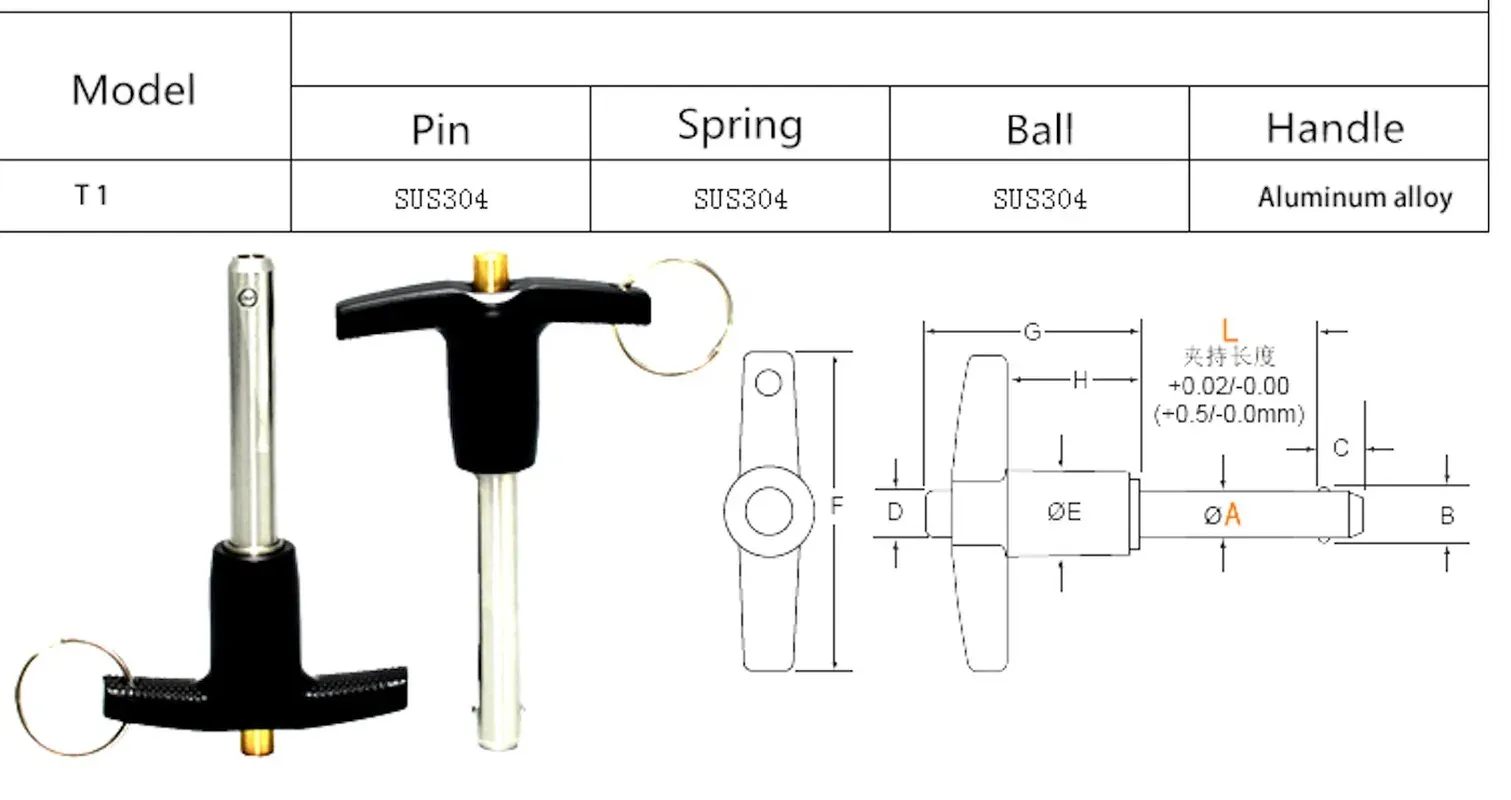

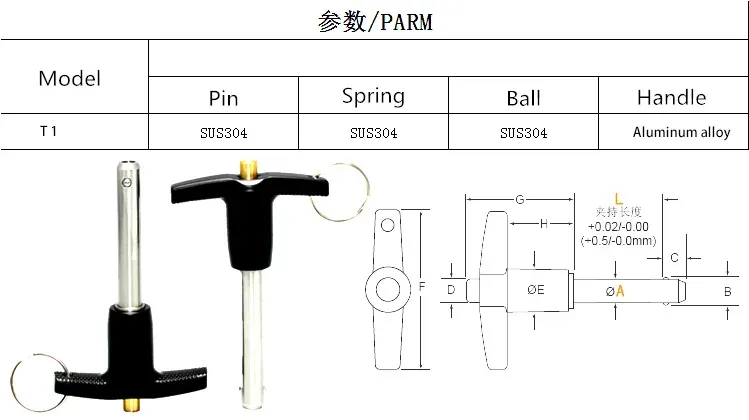

Full T1 dimension table (mm). A = shank diameter; L = grip length.
Model | A | L (+0.5/-0 mm) | B (±0.05) | D (+0/-0.3) | G | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
T1 | 5 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 5.54 | 6 | 31.3 | 13.1 | 19.7 | 6.5 | 46.1 |
T1 | 6 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 6.99 | 7 | 31.3 | 13.1 | 19.7 | 6.5 | 46.1 |
T1 | 8 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 9.42 | 8 | 31.3 | 13.1 | 19.7 | 6.5 | 46.1 |
T1 | 10 | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 11.86 | 9 | 36.1 | 15 | 24 | 7.7 | 51.1 |
T1 | 12 | 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 14.45 | 10 | 41.9 | 19.1 | 25.8 | 11.1 | 59.7 |
T1 | 16 | 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 19 | 14 | 49.8 | 23.9 | 30.1 | 14.5 | 78.7 |
T1 | 20 | 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 24.08 | 17 | 49.8 | 23.9 | 30.1 | 26.2 | 78.7 |
T1 | 25 | 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 30.94 | 22 | 55.9 | 32 | 33.9 | 26.2 | 88.9 |
Materials and Finishes
Pin, spring, and locking ball are SUS304 stainless steel; the T-handle is aluminum alloy. Other material combinations are quoted from your drawing.
Applications
Fixtures, dies, removable machine parts, and equipment where components must change over quickly without tools. The T-handle pin is easy to grip and pull in tight spaces. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote a T-handle quick release pin?
A: The pin type, shank diameter, grip length, handle style, material, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a sample?
A: Yes. Send the sample or a drawing and we produce to match.
Q: Do you ship worldwide?
A: Yes. We supply B2B customers worldwide from Shenzhen with export packing.
