Ball Plungers
Ball Plunger Manufacturer
Ball plunger manufacturer - press-fit ball plungers in eight sizes from 2 mm to 12 mm, with SUS303, brass, bronze, or POM housings. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Ball plunger
- Body sizes
- Eight sizes, D 2 - 12 mm (2x3 to 12x16)
- Housing materials
- SUS303 stainless steel, H65 copper, phosphor bronze, carbon steel, POM or hardened steel
- Spring and ball
- SUS304 stainless steel
- Function
- Detent, positioning, indexing, locking
- Operating temperature
- Up to +250 max, per specification sheet
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

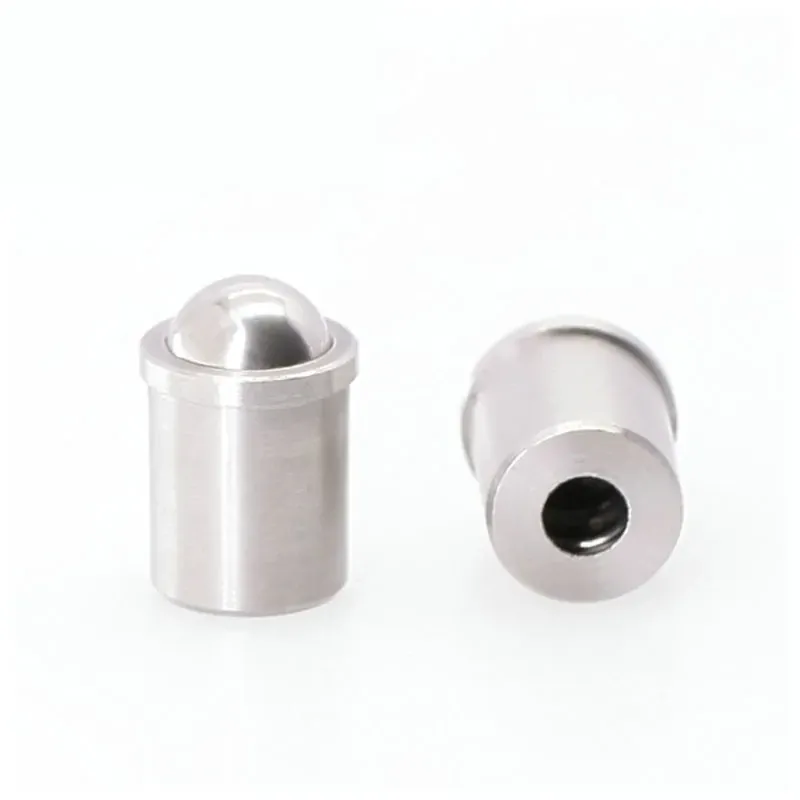

A ball plunger is a spring-loaded ball set in a compact body. The body is pressed into a bore in a fixture or machine part, and the ball snaps into a mating groove to create a repeatable detent - positioning, indexing, or locking a part without tools. SKN Fastener manufactures ball plungers in eight standard sizes from 2 mm to 12 mm.
Available Sizes and Options

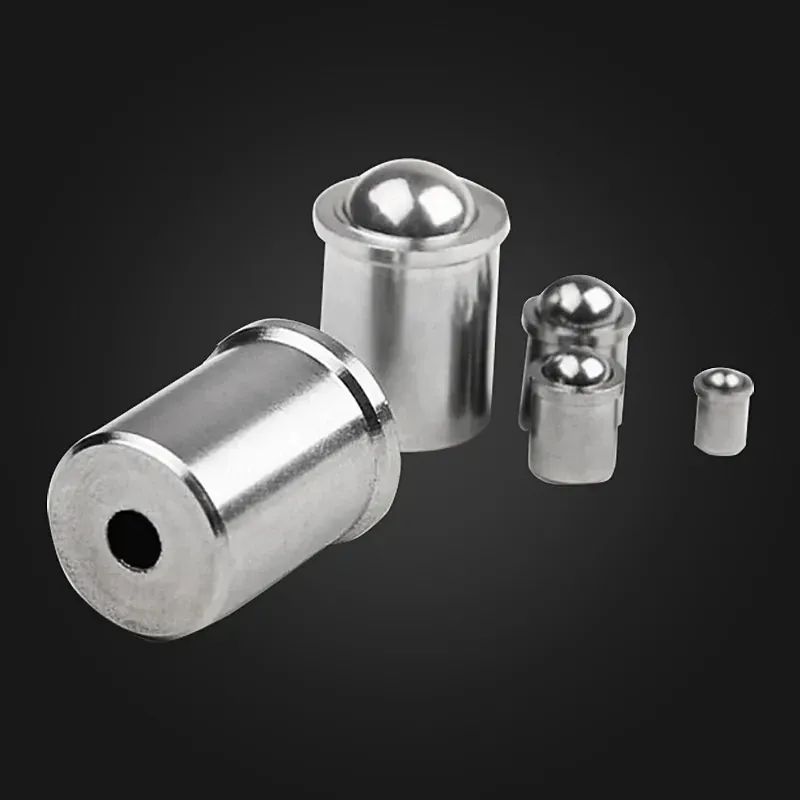

Eight standard sizes cover body diameters from 2 mm to 12 mm (2x3 through 12x16). Housings come in SUS303 stainless steel, H65 copper, phosphor bronze, carbon steel, or POM. Custom sizes and materials are manufactured to your drawing under our OEM/ODM service.

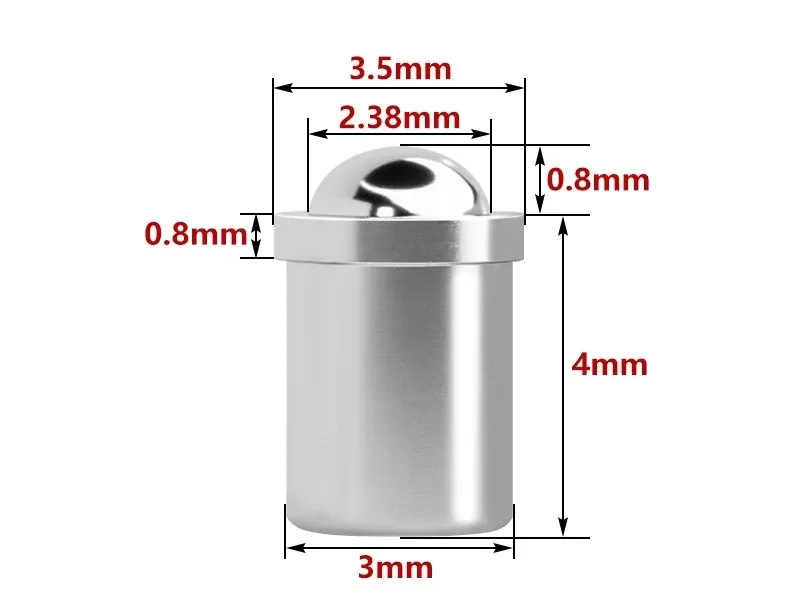

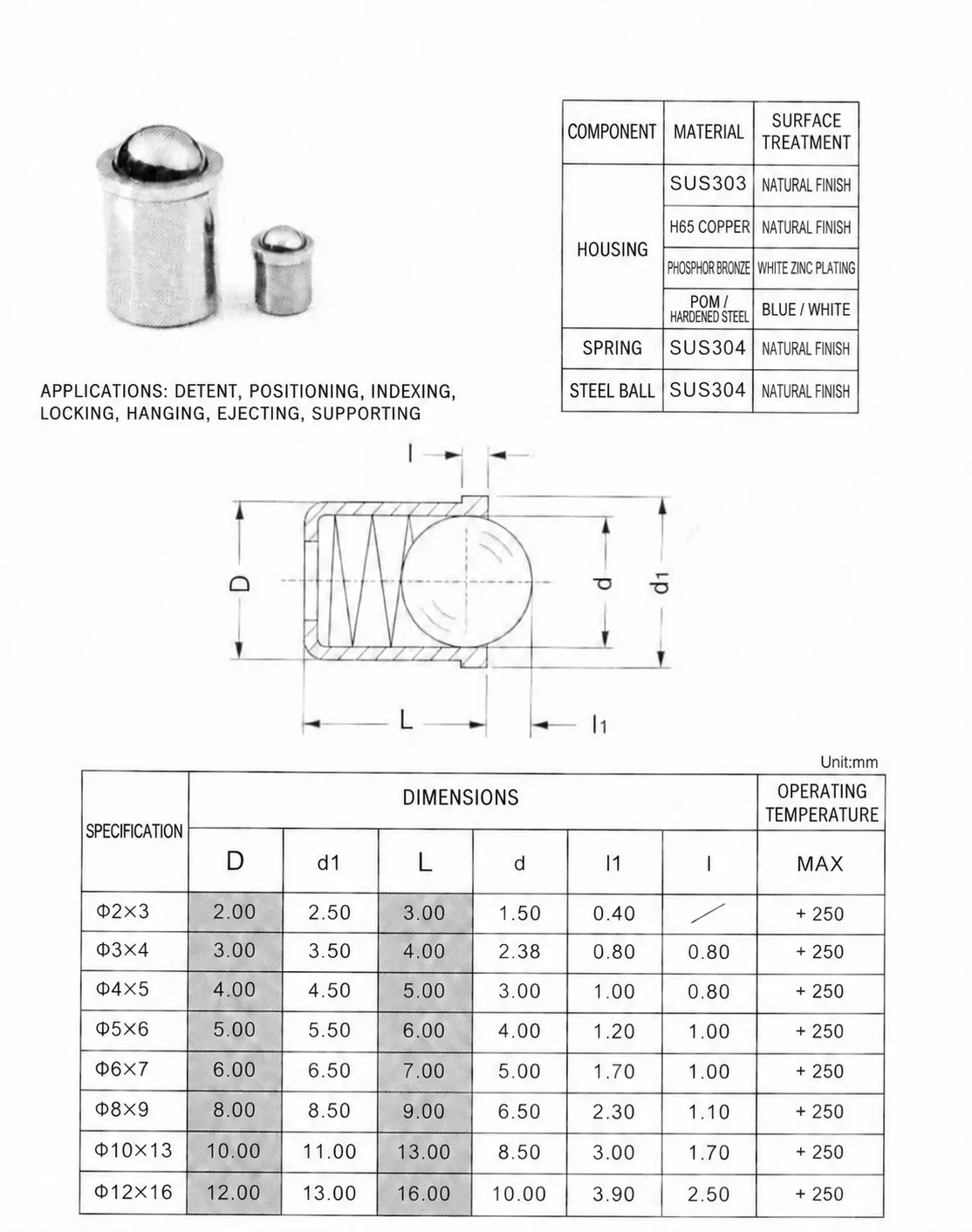

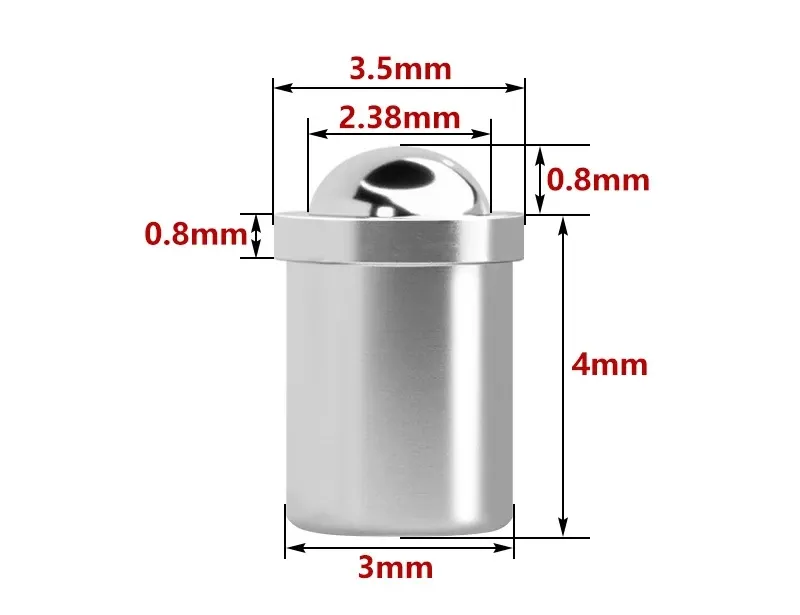

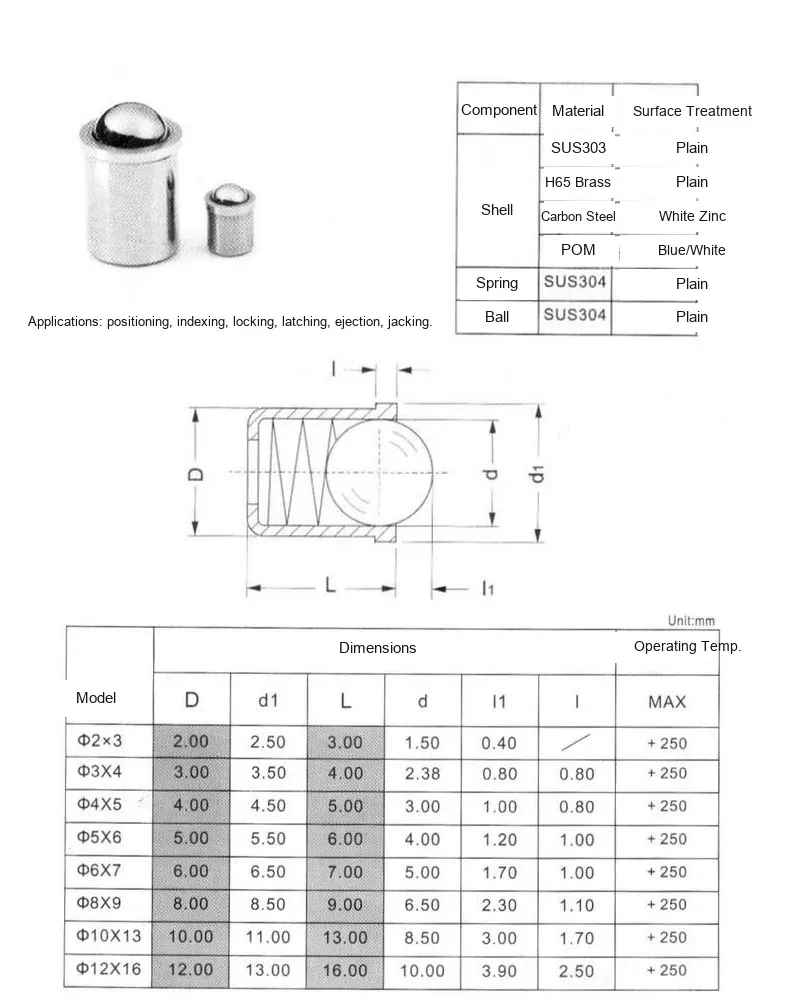

Full ball plunger dimension table (mm). D = body diameter; L = body length; d = ball diameter.
Specification | D | d1 | L | d | l1 | l | Operating temperature max |
|---|---|---|---|---|---|---|---|
2x3 | 2.00 | 2.50 | 3.00 | 1.50 | 0.40 | - | +250 |
3x4 | 3.00 | 3.50 | 4.00 | 2.38 | 0.80 | 0.80 | +250 |
4x5 | 4.00 | 4.50 | 5.00 | 3.00 | 1.00 | 0.80 | +250 |
5x6 | 5.00 | 5.50 | 6.00 | 4.00 | 1.20 | 1.00 | +250 |
6x7 | 6.00 | 6.50 | 7.00 | 5.00 | 1.70 | 1.00 | +250 |
8x9 | 8.00 | 8.50 | 9.00 | 6.50 | 2.30 | 1.10 | +250 |
10x13 | 10.00 | 11.00 | 13.00 | 8.50 | 3.00 | 1.70 | +250 |
12x16 | 12.00 | 13.00 | 16.00 | 10.00 | 3.90 | 2.50 | +250 |
Materials and Finishes
Housing options: SUS303 stainless steel and H65 copper in natural finish; phosphor bronze or carbon steel with white zinc plating; POM or hardened steel in blue or white. Spring: SUS304 stainless steel. Steel ball: SUS304 stainless steel. Special materials and finishes follow your drawing.
Applications
Detent, positioning, indexing, locking, latching, hanging, ejecting, jacking, and supporting functions on fixtures, jigs, dies, and machine parts. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The ball plunger size (body diameter and length), housing material, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a drawing or sample?
A: Yes. Send the drawing or sample and we manufacture to match under our OEM/ODM service.
Q: Do you supply bulk orders worldwide?
A: Yes. We supply B2B customers, wholesalers, and OEM clients worldwide from Shenzhen with export packing.
