Ball Plungers
Mounting Base for Ball Plungers
Mounting base for ball plungers - press-fit BCHA and BCHAJ ball plungers, D1 7.5 to 30 mm, in stainless steel with SUS440C or polyamide balls. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Mounting base for ball plungers (press-fit BCHA / BCHAJ)
- Body sizes
- D1 7.5 - 30 mm (D 9 - 32 mm)
- Materials
- SUS304 main body and adjusting ring; retaining ring SUS440C (55 HRC or higher)
- Ball options
- BCHA: SUS440C stainless steel; BCHAJ: polyamide
- Installation
- Press-fit into H7 tolerance hole (per specification sheet)
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

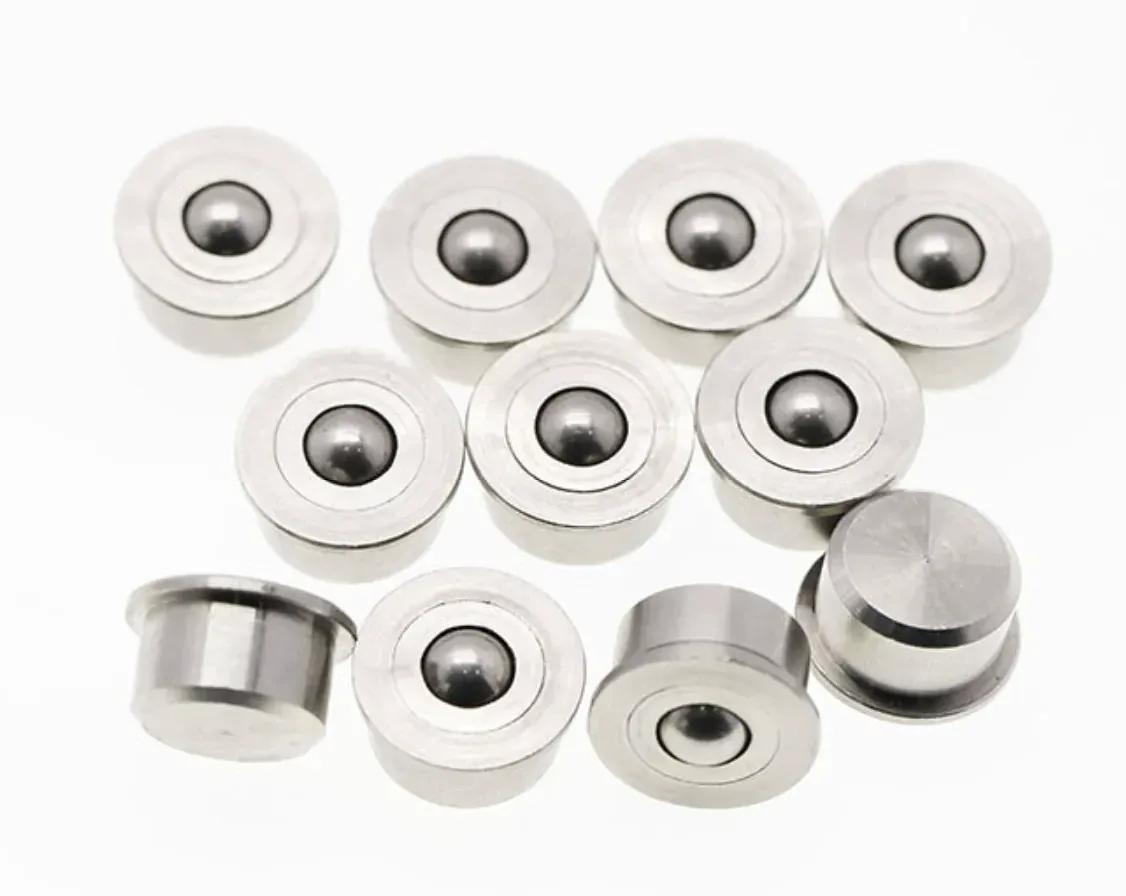

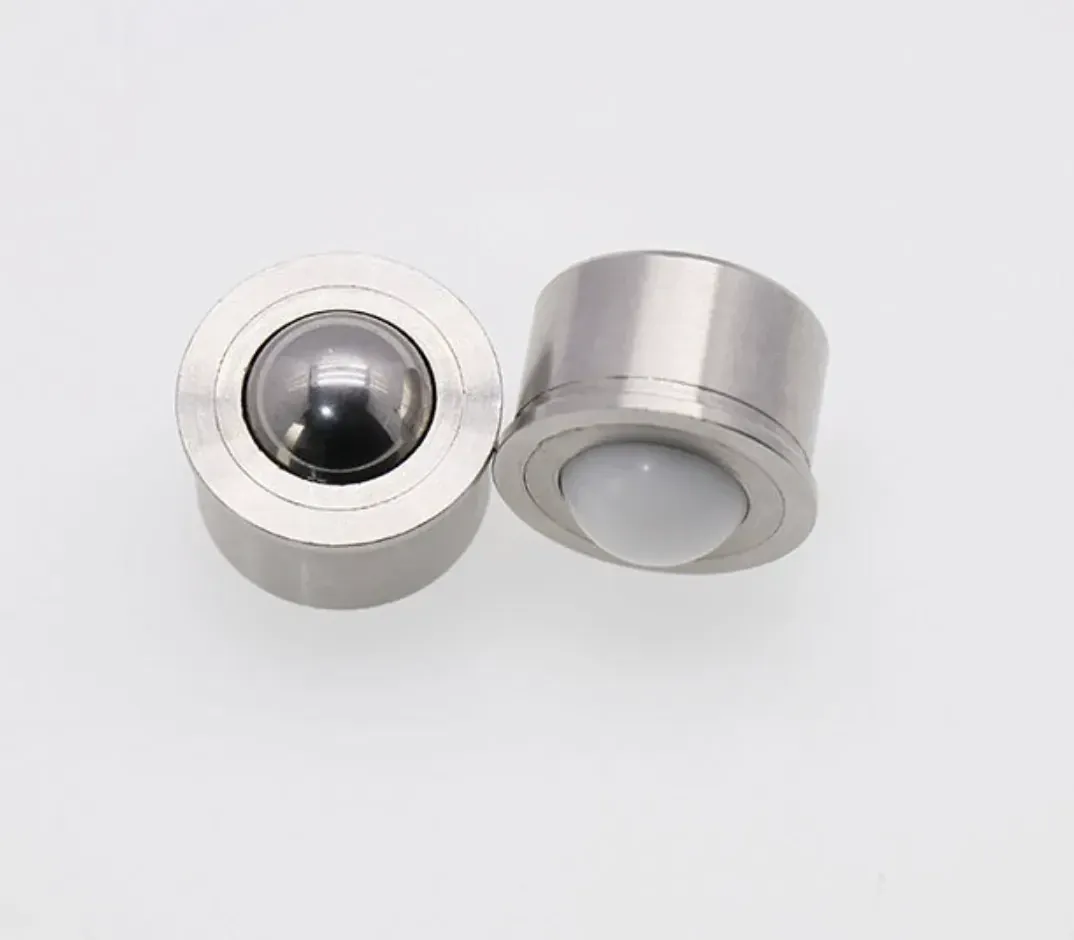

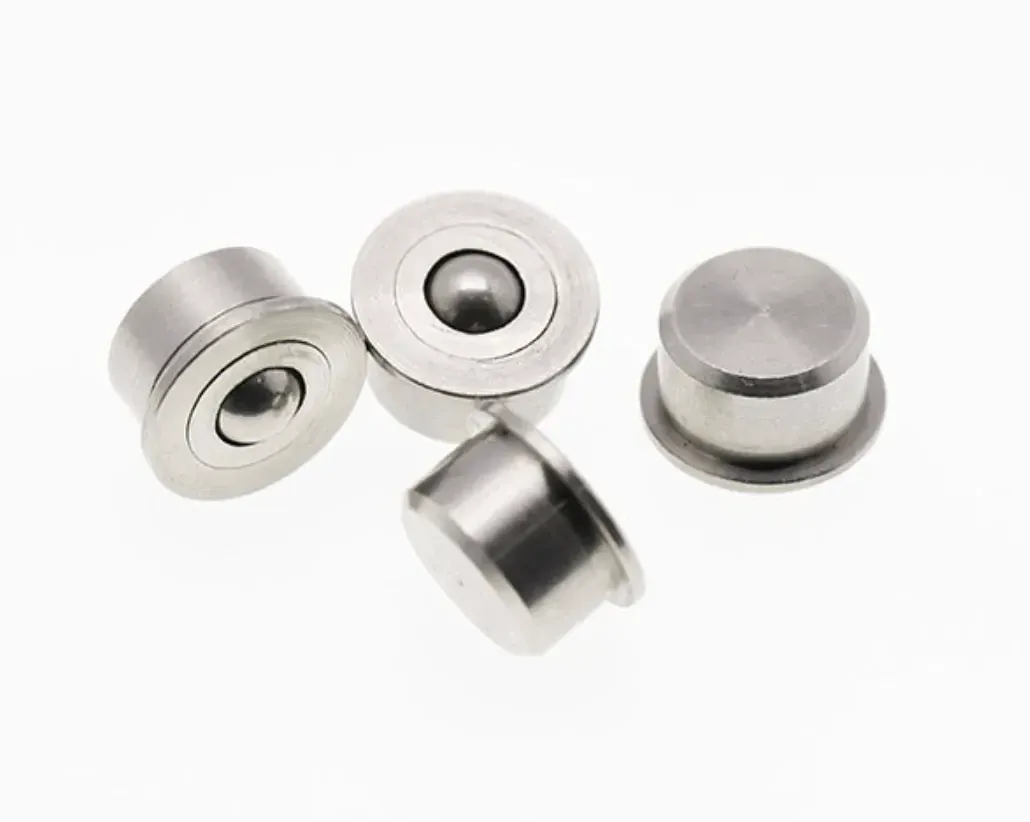

These mounting bases for ball plungers press straight into a prepared bore: the stepped body seats in the hole and the spring-loaded ball provides the detent at the mounting point. BCHA uses a stainless steel ball and BCHAJ uses a polyamide ball with a retaining ring. Sizes run from D1 7.5 mm to D1 30 mm.
Available Sizes and Options
Seven sizes from D1 7.5 mm to D1 30 mm (body D 9 - 32 mm). The specification sheet recommends a H7 tolerance for the press-fit hole (installation size). Custom sizes are quoted from your drawing under our OEM/ODM service.

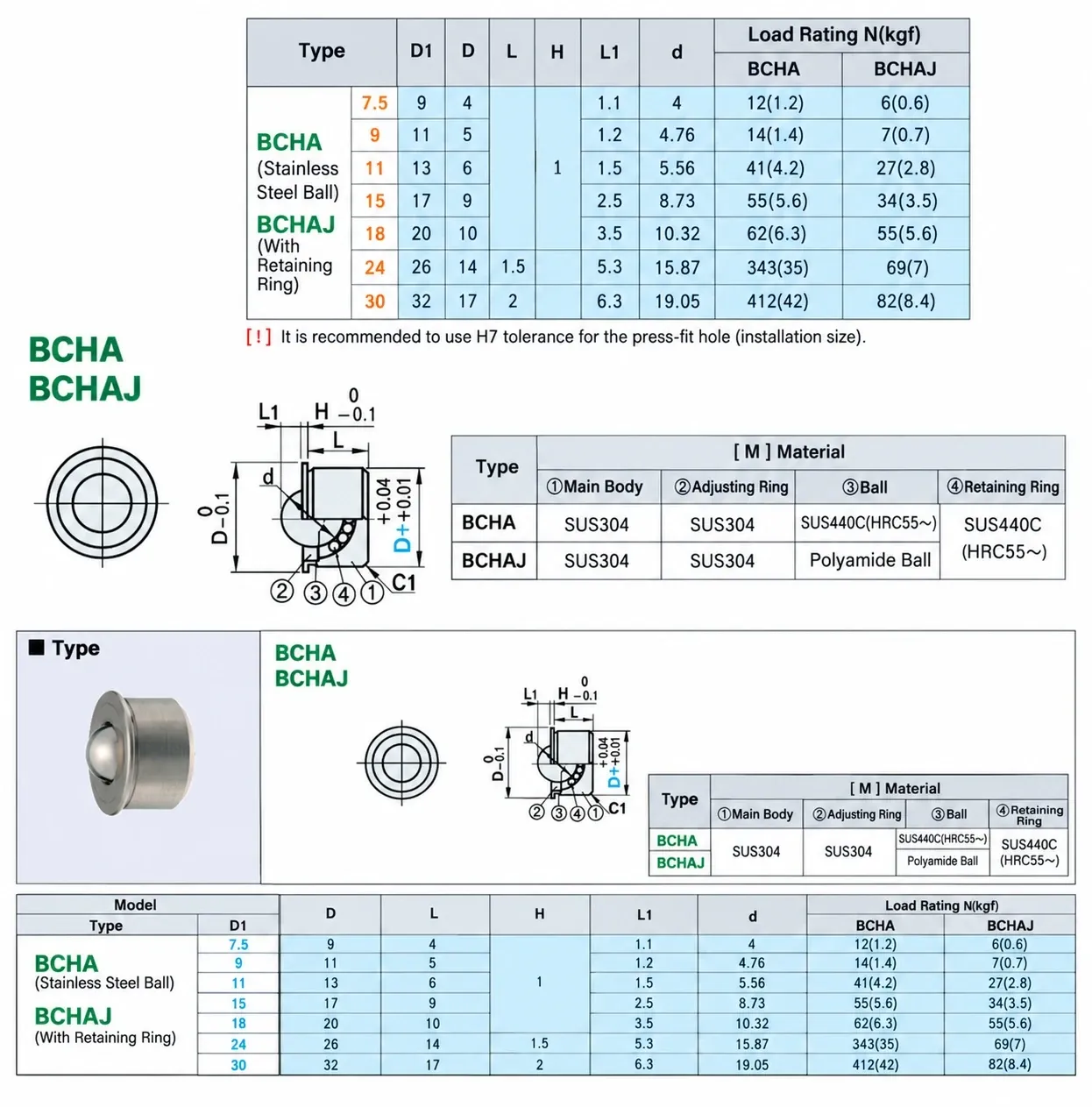

BCHA / BCHAJ press-fit ball plunger dimensions (mm) and load rating N (kgf).
Type | D1 | D | L | H | L1 | d | Load BCHA N (kgf) | Load BCHAJ N (kgf) |
|---|---|---|---|---|---|---|---|---|
BCHA / BCHAJ | 7.5 | 9 | 4 | 1 | 1.1 | 4 | 12 (1.2) | 6 (0.6) |
BCHA / BCHAJ | 9 | 11 | 5 | 1 | 1.2 | 4.76 | 14 (1.4) | 7 (0.7) |
BCHA / BCHAJ | 11 | 13 | 6 | 1 | 1.5 | 5.56 | 41 (4.2) | 27 (2.8) |
BCHA / BCHAJ | 15 | 17 | 9 | 1 | 2.5 | 8.73 | 55 (5.6) | 34 (3.5) |
BCHA / BCHAJ | 18 | 20 | 10 | 1 | 3.5 | 10.32 | 62 (6.3) | 55 (5.6) |
BCHA / BCHAJ | 24 | 26 | 14 | 1.5 | 5.3 | 15.87 | 343 (35) | 69 (7) |
BCHA / BCHAJ | 30 | 32 | 17 | 2 | 6.3 | 19.05 | 412 (42) | 82 (8.4) |
Materials and Finishes
Main body and adjusting ring: SUS304 stainless steel. Ball: SUS440C (55 HRC or higher) for BCHA; polyamide for BCHAJ. Retaining ring: SUS440C (55 HRC or higher). Special materials follow your drawing.
Applications
Mounting points, positioners, and detents on fixtures, jigs, and equipment, press-fit into a prepared bore. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The type (BCHA or BCHAJ), body size (D1), and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a drawing or sample?
A: Yes. Send the drawing or sample and we manufacture to match under our OEM/ODM service.
Q: Do you supply bulk orders worldwide?
A: Yes. We supply B2B customers, wholesalers, and OEM clients worldwide from Shenzhen with export packing.
