Ball Plungers
Ball Plunger Locking Mechanism
Ball plunger locking mechanism - POM plastic ball plungers with stainless steel springs and balls, body sizes D1 2 mm to 10 mm. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Ball plunger locking mechanism (POM plastic ball plunger)
- Body sizes
- D1 2 - 10 mm (D3 2.5 - 10.6 mm)
- Load types
- Light load and heavy load
- Materials
- POM plastic body; stainless steel spring and ball
- Spring force
- 0.54 - 15 N by size
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

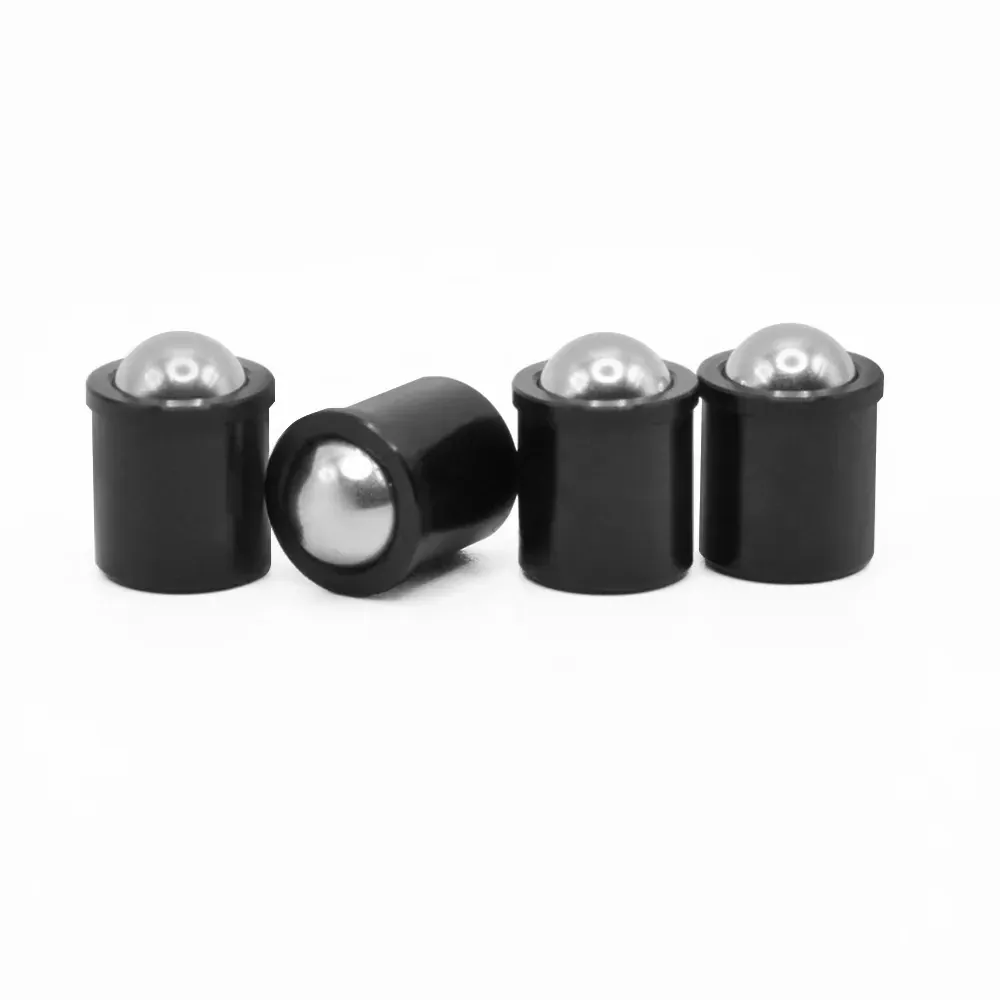

A ball plunger locking mechanism holds parts with a spring-loaded ball that snaps into a groove. The POM plastic body presses into a bore, so no separate housing is needed, and the ball releases when the mating part moves. Spring force ranges from 0.54 N to 15 N depending on size, in light load and heavy load types.
Available Sizes and Options
Seven sizes from D1 2 mm to D1 10 mm (body D3 2.5 - 10.6 mm). Light load types start at D1 2; heavy load types are available from D1 4 mm up, with body lengths L1 from 3 mm to 14.5 mm. Custom sizes are quoted from your drawing under our OEM/ODM service.

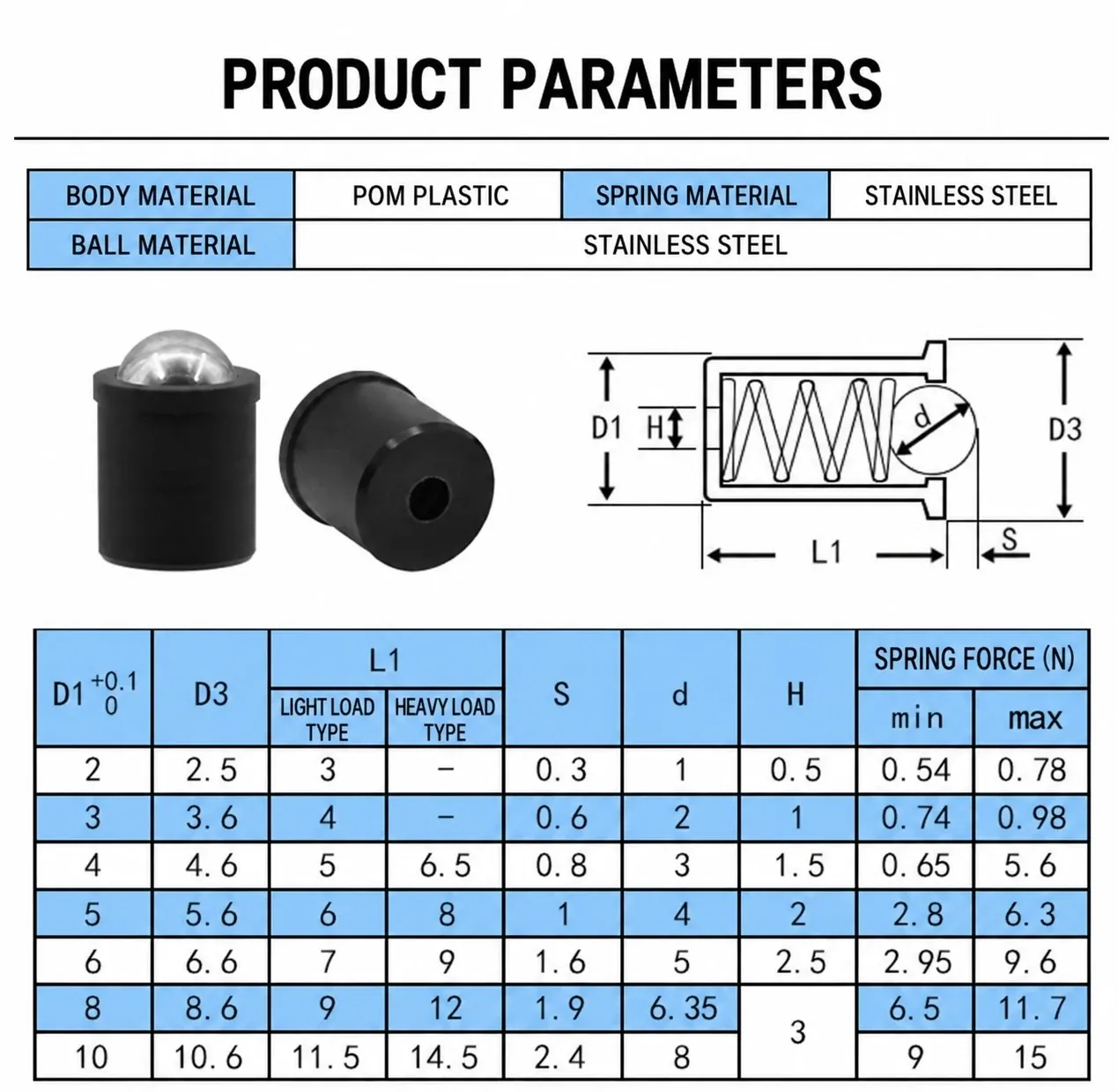

Plastic ball plunger dimensions (mm) and spring force (N).

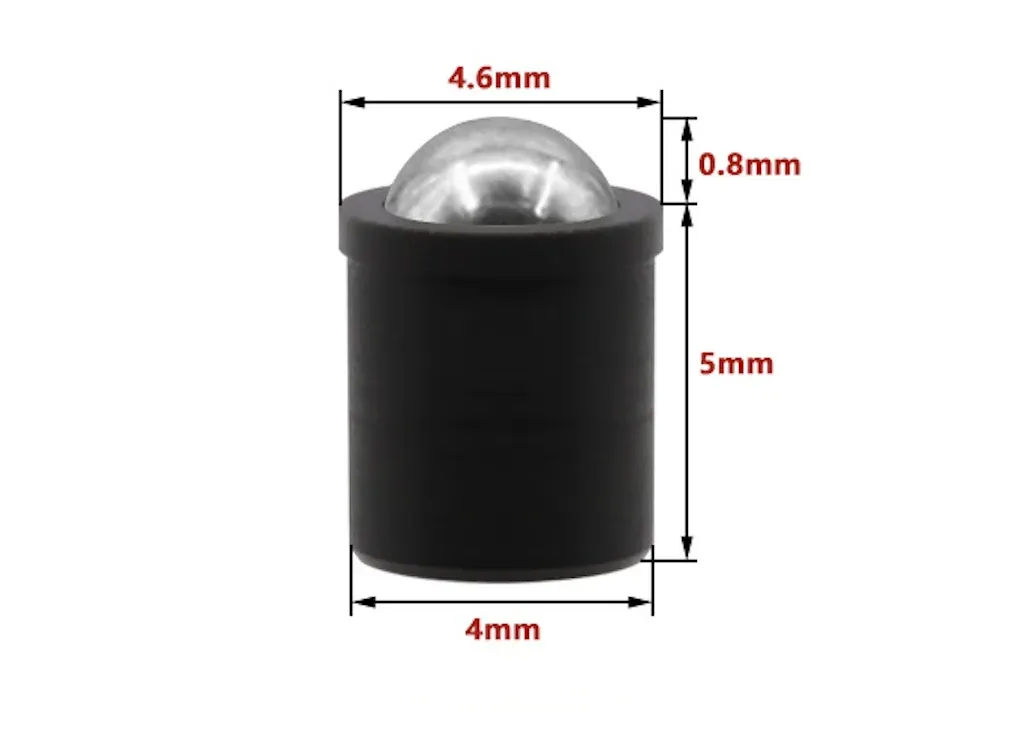

D1 (+0.1/0) | D3 | L1 light load | L1 heavy load | S | d | H | Spring force min (N) | Spring force max (N) |
|---|---|---|---|---|---|---|---|---|
2 | 2.5 | 3 | - | 0.3 | 1 | 0.5 | 0.54 | 0.78 |
3 | 3.6 | 4 | - | 0.6 | 2 | 1 | 0.74 | 0.98 |
4 | 4.6 | 5 | 6.5 | 0.8 | 3 | 1.5 | 0.65 | 5.6 |
5 | 5.6 | 6 | 8 | 1 | 4 | 2 | 2.8 | 6.3 |
6 | 6.6 | 7 | 9 | 1.6 | 5 | 2.5 | 2.95 | 9.6 |
8 | 8.6 | 9 | 12 | 1.9 | 6.35 | 3 | 6.5 | 11.7 |
10 | 10.6 | 11.5 | 14.5 | 2.4 | 8 | 3 | 9 | 15 |
Materials and Finishes
Body: POM plastic. Spring: stainless steel. Ball: stainless steel. Special material requirements follow your drawing.
Applications
Detent and light locking functions on panels, enclosures, and light equipment where a plastic body suits the assembly. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The body size (D1), load type (light or heavy), and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a drawing or sample?
A: Yes. Send the drawing or sample and we manufacture to match under our OEM/ODM service.
Q: Do you supply bulk orders worldwide?
A: Yes. We supply B2B customers, wholesalers, and OEM clients worldwide from Shenzhen with export packing.
