Spring Plunger
Locking Spring Plunger Manufacturer
Locking spring plunger manufacturer - self-locking type 1316 and cam lock type 11315 in zinc plated carbon steel. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Locking spring plunger
- Models
- 1316 (self-locking type); 11315 (cam lock / clamp type)
- Materials
- Body and nut: carbon steel, zinc plated; pin: carbon steel; spring: stainless steel
- Panel thickness (T)
- 0.64 - 3.18 mm by model
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

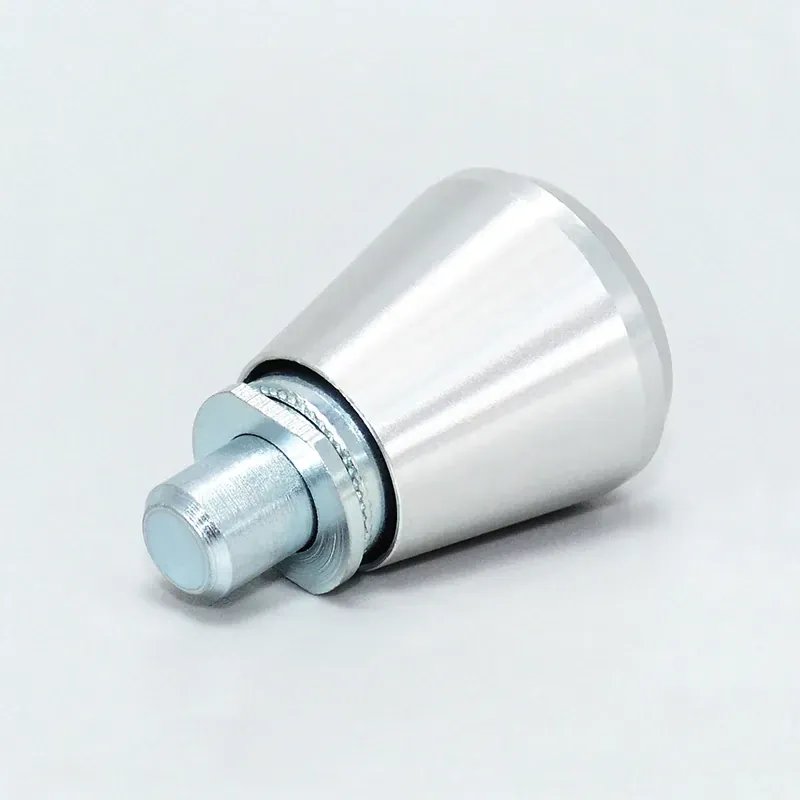

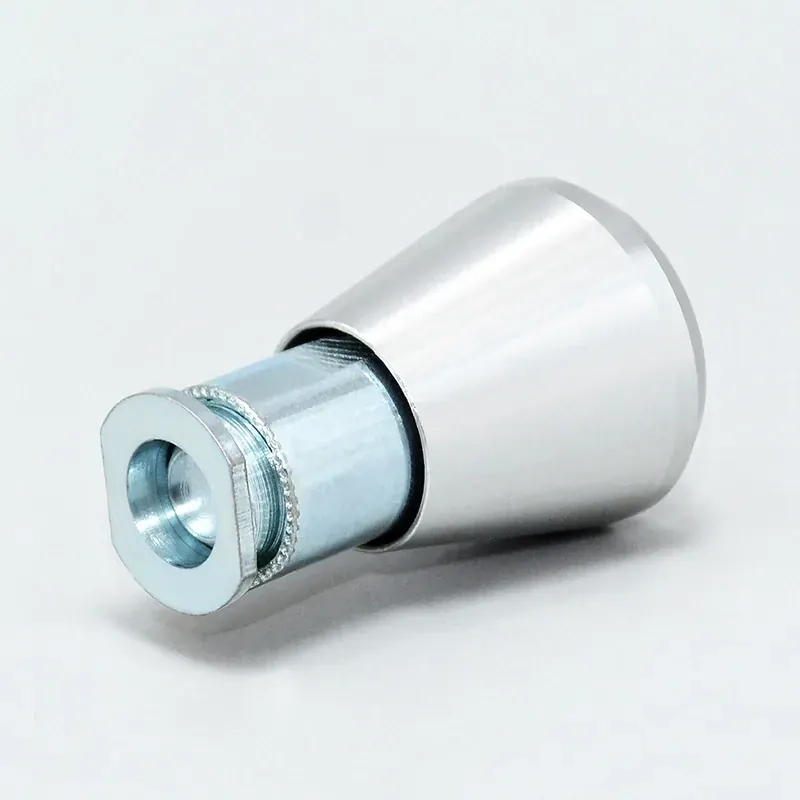

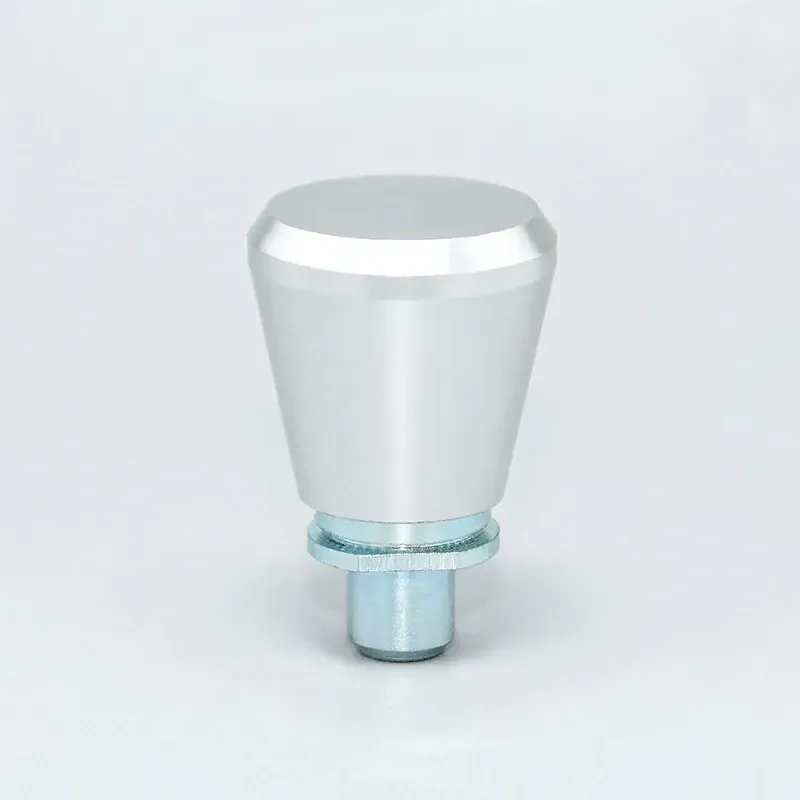

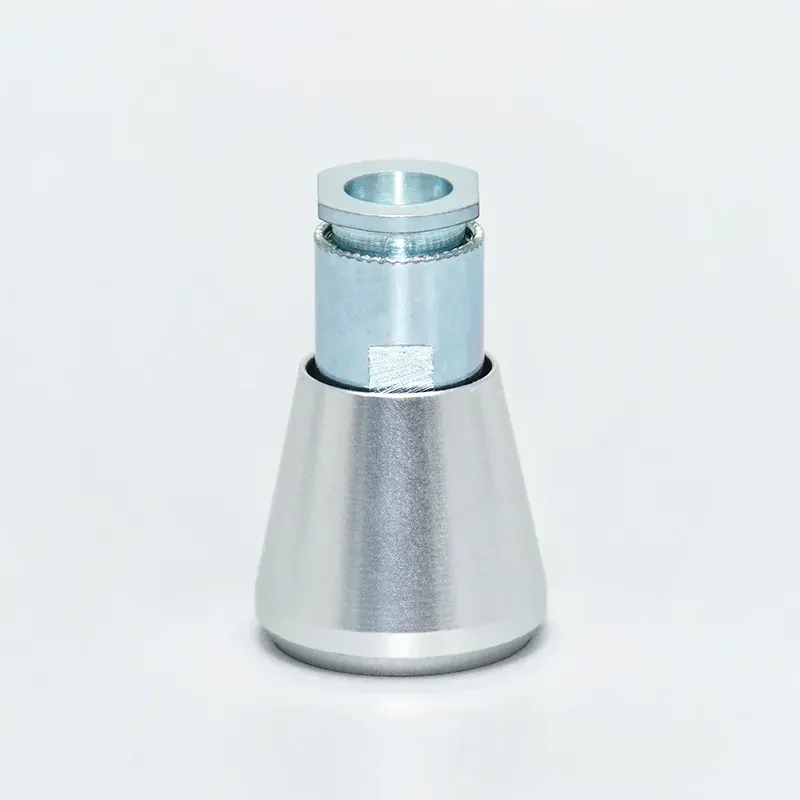

Locking spring plungers combine a spring-loaded pin with a locking action for panels and equipment. Two models are available: the 1316 self-locking type and the 11315 cam lock (clamp) type. Both use a zinc plated carbon steel body and nut, a carbon steel pin, and a stainless steel spring.
Available Sizes and Options
Two models with mounting dimensions for panel thicknesses from 0.64 mm to 3.18 mm (T min-max) - see the table. Custom versions are quoted from your drawing under our OEM/ODM service.

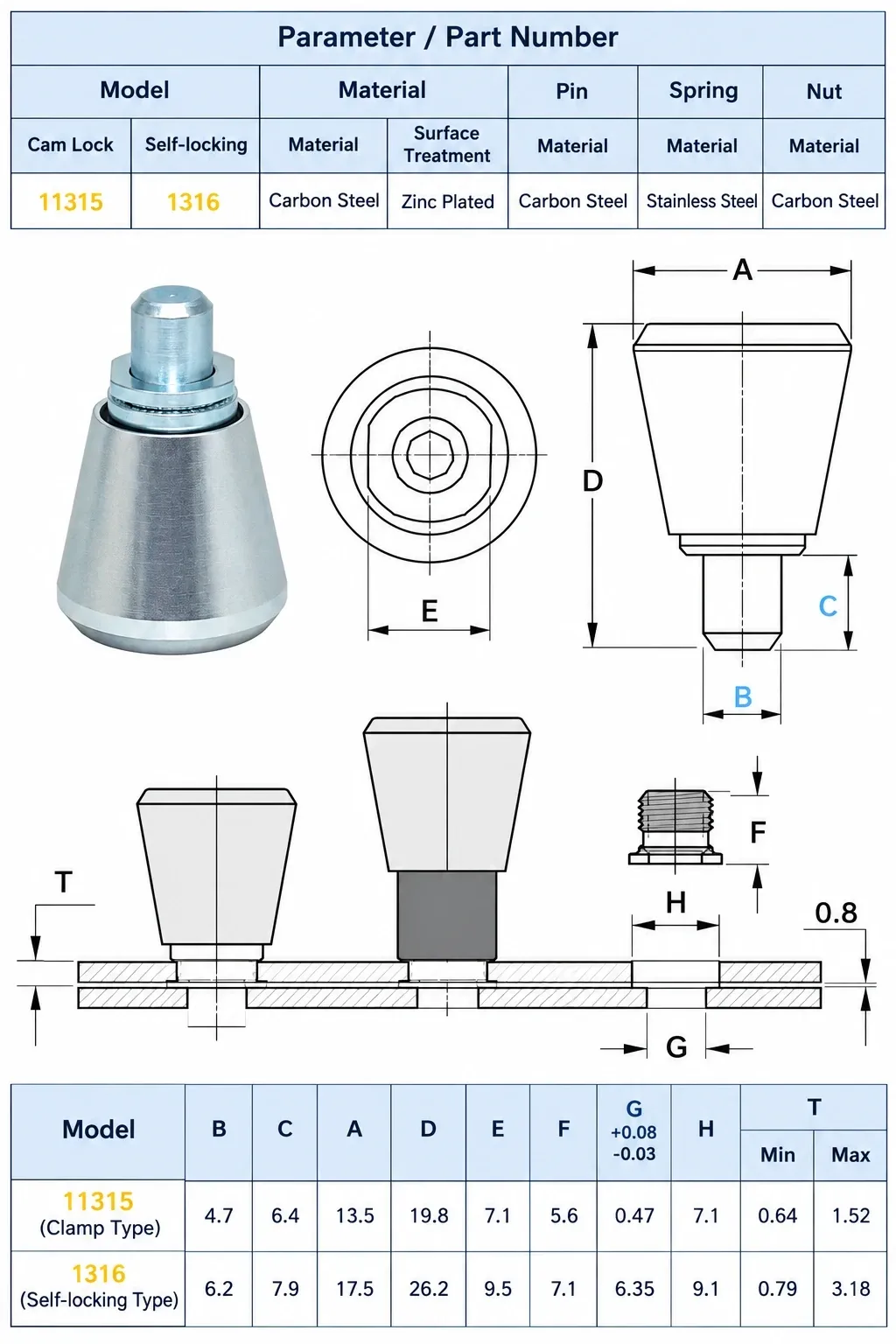

Locking spring plunger dimensions (mm). G tolerance +0.08/-0.03; T = panel thickness range.
Model | Type | B | C | A | D | E | F | G (+0.08/-0.03) | H | T min | T max |
|---|---|---|---|---|---|---|---|---|---|---|---|
11315 | Clamp type | 4.7 | 6.4 | 13.5 | 19.8 | 7.1 | 5.6 | 0.47 | 7.1 | 0.64 | 1.52 |
1316 | Self-locking type | 6.2 | 7.9 | 17.5 | 26.2 | 9.5 | 7.1 | 6.35 | 9.1 | 0.79 | 3.18 |
Materials and Finishes
Body and nut: carbon steel, zinc plated. Pin: carbon steel. Spring: stainless steel. Special materials and finishes follow your drawing.
Applications
Locking and positioning functions on panels, enclosures, and equipment. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The model (11315 clamp type or 1316 self-locking type) and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a drawing or sample?
A: Yes. Send the drawing or sample and we manufacture to match under our OEM/ODM service.
Q: Do you supply bulk orders worldwide?
A: Yes. We supply B2B customers, wholesalers, and OEM clients worldwide from Shenzhen with export packing.
