Spring Plunger
Spring Loaded Plunger Supplier
Spring loaded plunger supplier - screw-in plungers with steel nose or plastic tip, in four load classes from ultra light to extra heavy. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Spring loaded plunger (screw-in)
- Type codes
- Steel nose: THLSW / THLW / THW / THXW; plastic tip: THLSK / THLK / THHK / THXK
- Load classes
- Ultra light, light, heavy, extra heavy
- Materials
- Body SUS304; pin SUS440C (55 HRC min) or polyacetal; spring SUS631
- Operating temperature
- -30 to 260 C (steel nose); -30 to 80 C (plastic tip)
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

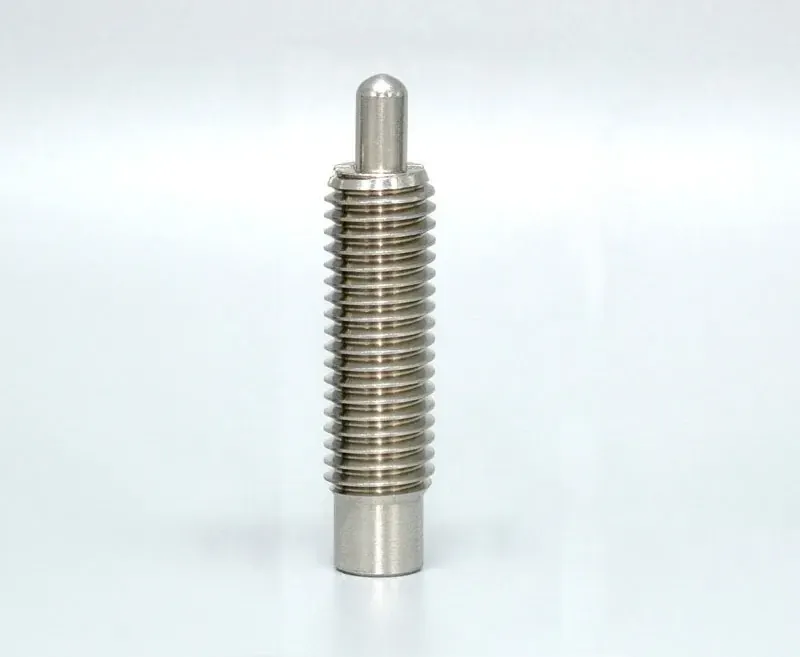

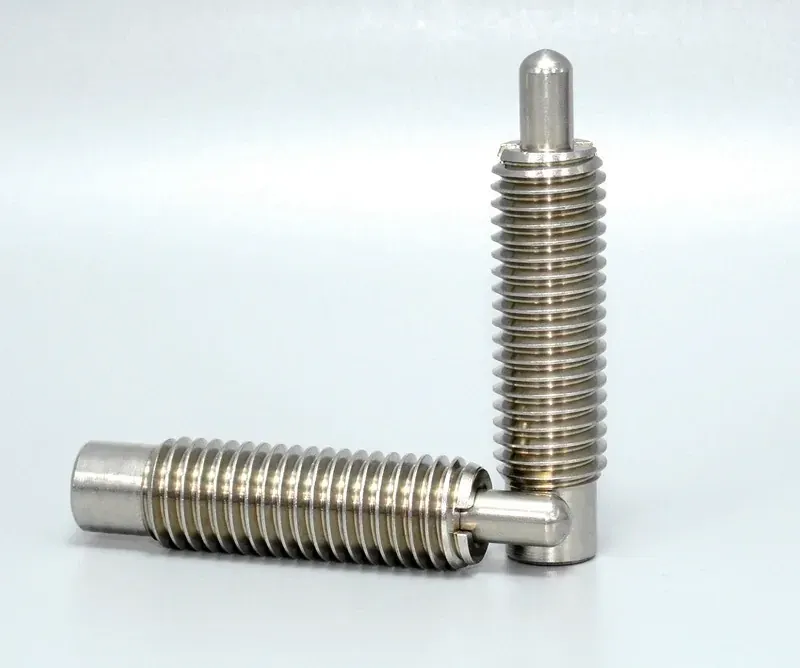

A spring loaded plunger holds parts with a spring pin: the pin presses into a mating groove to position or lock a part, and compresses when the part moves past. The range covers four load classes - ultra light, light, heavy, and extra heavy - in steel nose and plastic tip versions.
Available Sizes and Options

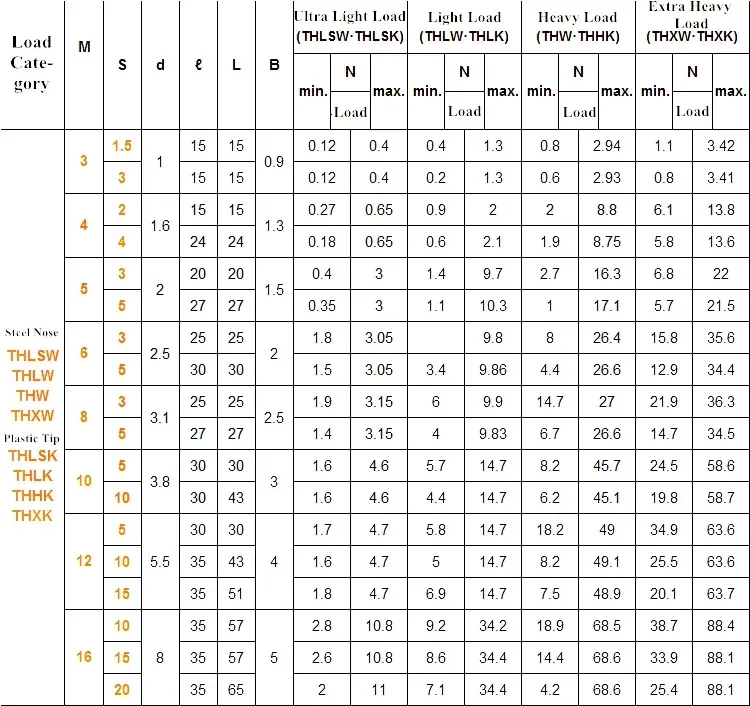

Steel nose types THLSW, THLW, THW, and THXW; plastic tip types THLSK, THLK, THHK, and THXK, covering ultra light to extra heavy loads. Tell us the thread size, length, load class, and quantity - custom versions are manufactured from your drawing under our OEM/ODM service.

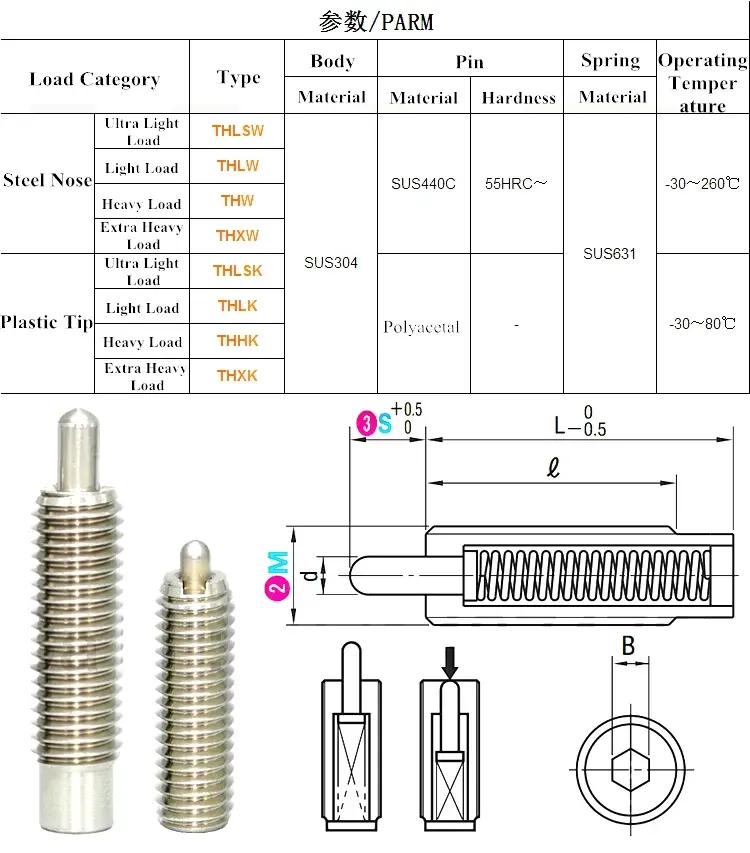

Spring loaded plunger types, materials, and operating temperature.
Type | Load class | Body material | Pin material | Pin hardness | Spring material | Operating temperature (C) |
|---|---|---|---|---|---|---|
THLSW | Ultra light | SUS304 | SUS440C | 55 HRC min | SUS631 | -30 to 260 |
THLW | Light | SUS304 | SUS440C | 55 HRC min | SUS631 | -30 to 260 |
THW | Heavy | SUS304 | SUS440C | 55 HRC min | SUS631 | -30 to 260 |
THXW | Extra heavy | SUS304 | SUS440C | 55 HRC min | SUS631 | -30 to 260 |
THLSK | Ultra light | SUS304 | Polyacetal | - | SUS631 | -30 to 80 |
THLK | Light | SUS304 | Polyacetal | - | SUS631 | -30 to 80 |
THHK | Heavy | SUS304 | Polyacetal | - | SUS631 | -30 to 80 |
THXK | Extra heavy | SUS304 | Polyacetal | - | SUS631 | -30 to 80 |
Materials and Finishes
Steel nose types: SUS440C pin with a hardness of 55 HRC or higher. Plastic tip types: polyacetal pin. Body: SUS304 stainless steel. Spring: SUS631. Operating temperature: -30 to 260 C for steel nose types, -30 to 80 C for plastic tip types.
Applications
Positioning, indexing, and latching functions where a defined spring force holds a part in place. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The type (steel nose or plastic tip), load class, thread size, length, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a drawing or sample?
A: Yes. Send the drawing or sample and we manufacture to match under our OEM/ODM service.
Q: Do you supply bulk orders worldwide?
A: Yes. We supply B2B customers, wholesalers, and OEM clients worldwide from Shenzhen with export packing.
